12.1 Removal of the left side cover
How to remove
1. Unlock the cover from the frame by pushing plastic hooks in handles.
Tip: A tool such as a flat screwdriver can be used to more easily unlock the locked handles.

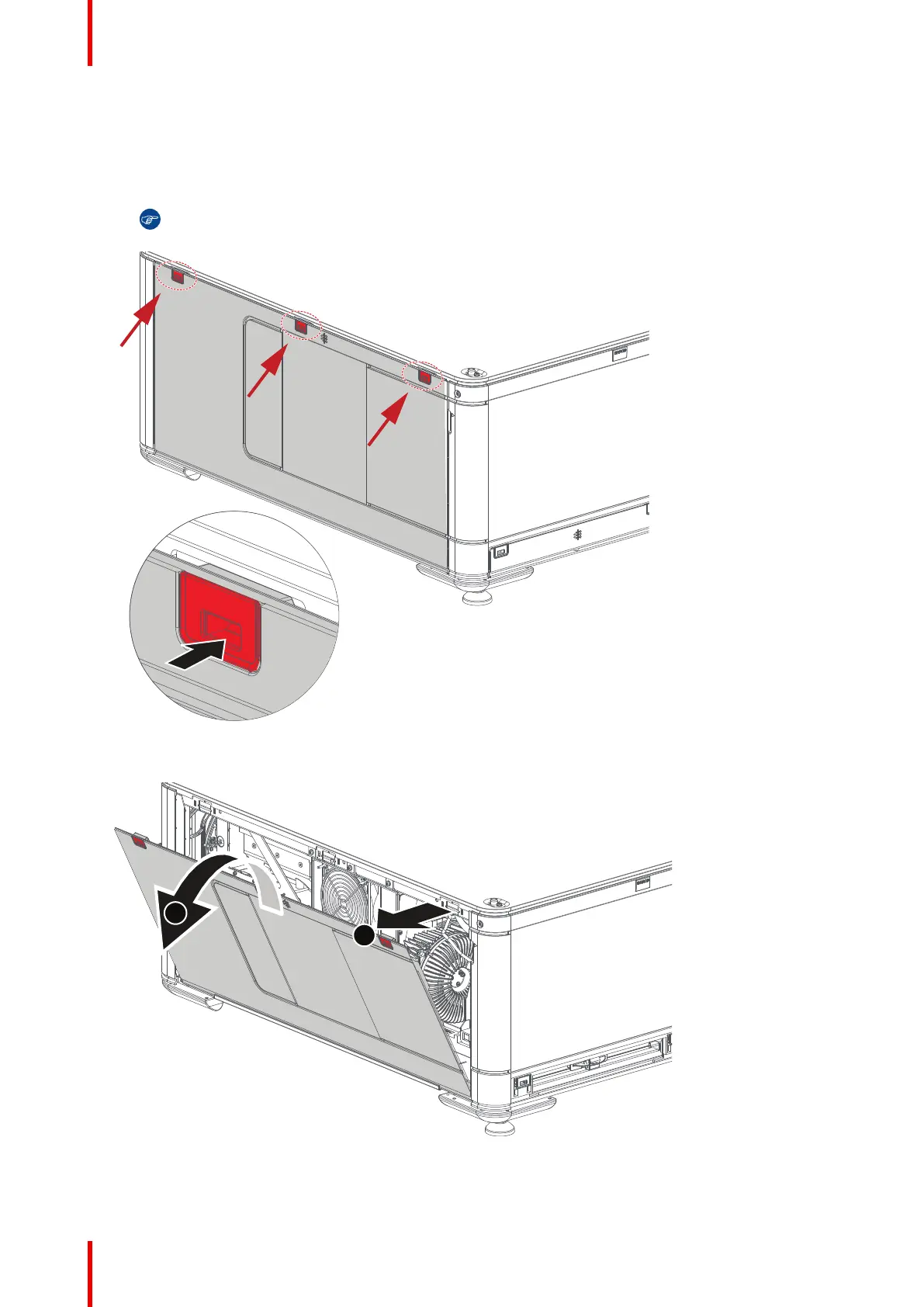

Image 12–1 Left side cover unlocking
2. Tilt the upper side of the cover outwards (reference 1).
Image 12–2 Left side cover removing from the projector
3. Lift up the cover and remove it (reference 2).
