12.4 Removal of the entire rear cover
Required tools
Torx screwdriver T20
How to remove
1. Remove the two screws at the top of the cover. Use a T20 Torx screwdriver.

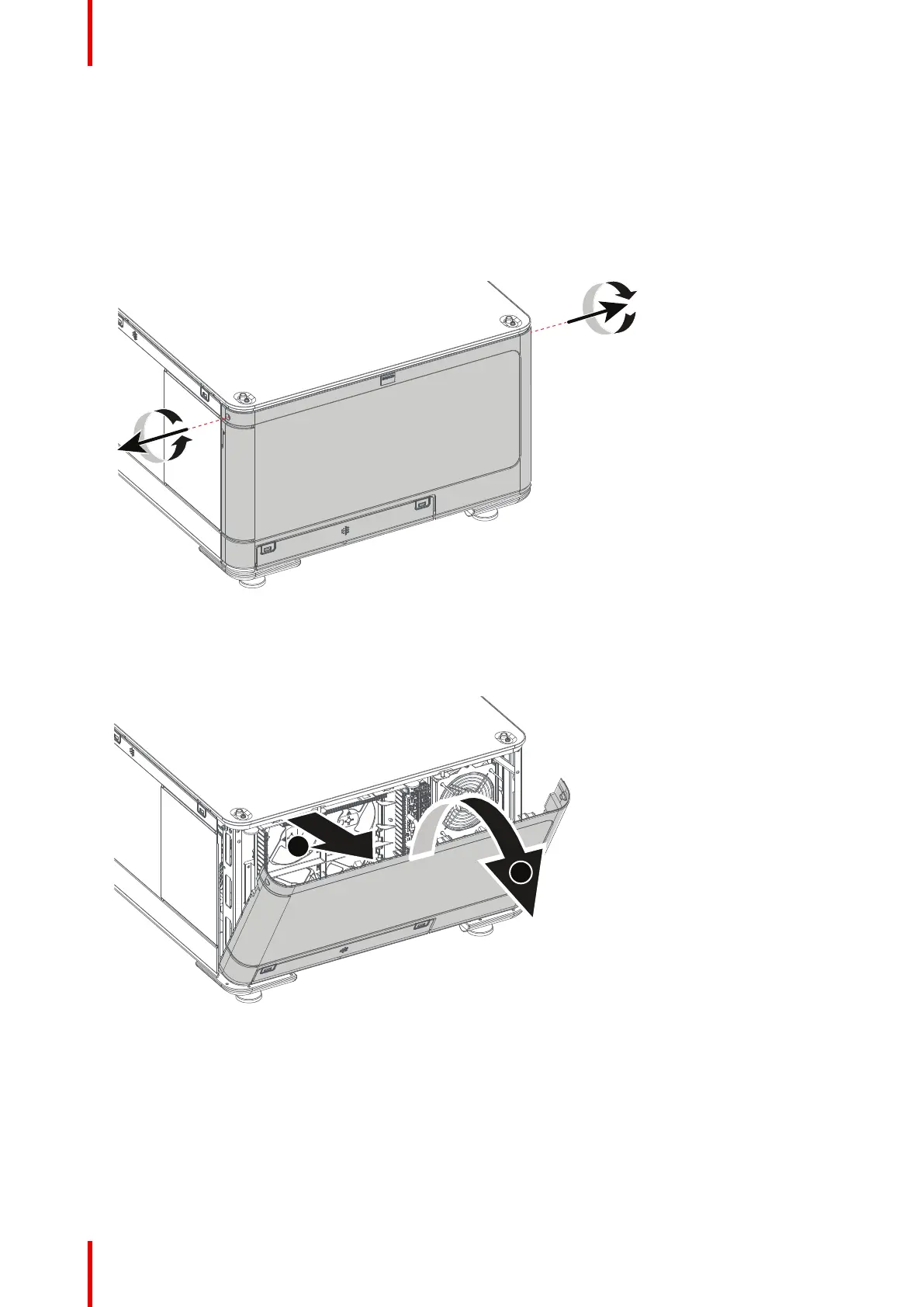

Image 12–7 Removing the screws of the rear cover
2. Tilt the upper side of the cover outwards (reference 1).
1
2
Image 12–8 Rear cover removing from the projector
3. Lift up the cover and remove it (reference 2).
