12.11 Mounting the rear cover
How to mount
1. Place the cover onto the hooks located on the bottom of the projector frame (reference 1). To clearly see
the hooks (reference 1) when mounting the cover, place the cover in a slightly tilted angle as shown in the
drawing.

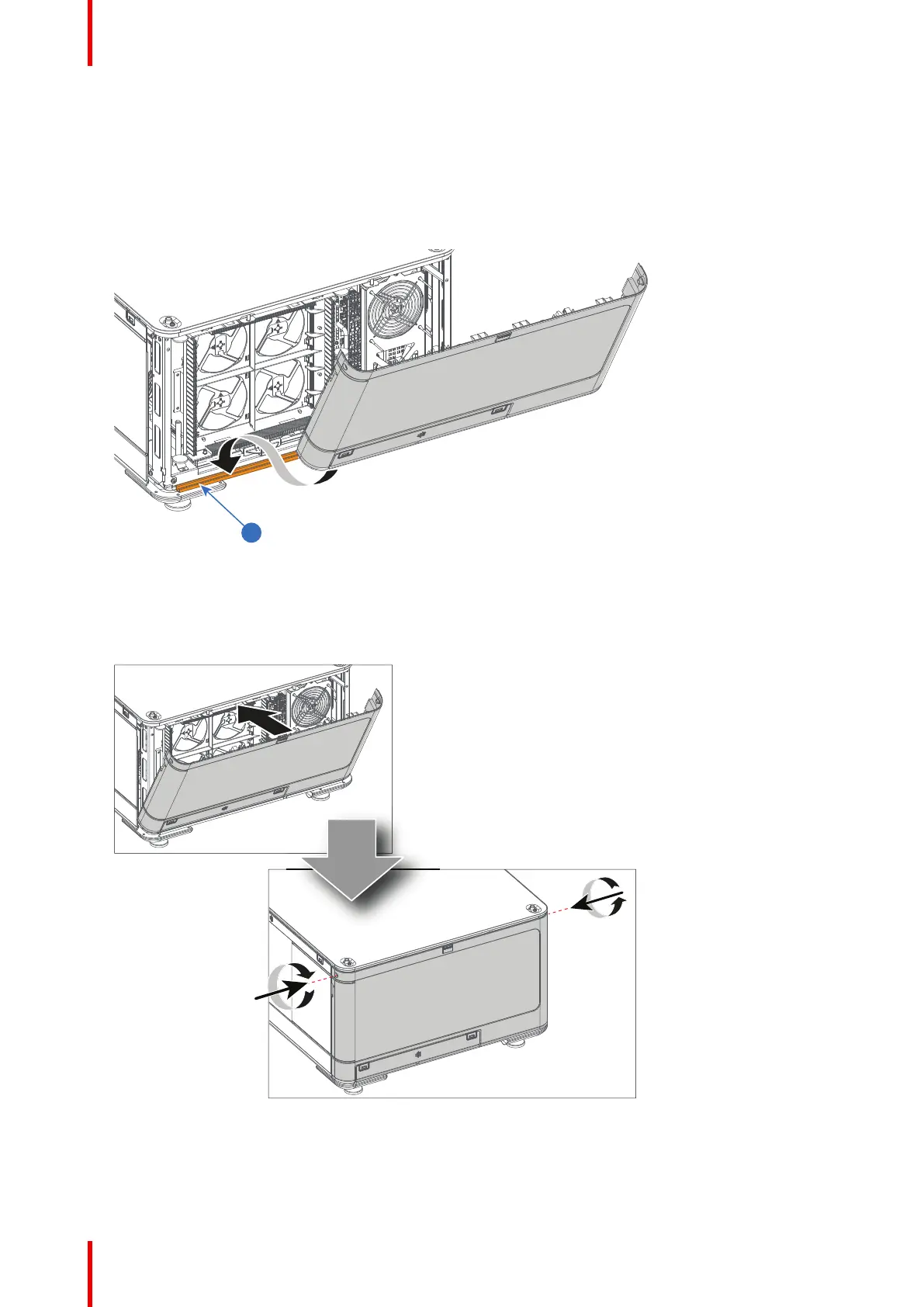

Image 12–20 Positioning the rear cover
2. Push the upper side of the cover towards the projector to close it.
Image 12–21 Tightening the screws of the cover
3. Fasten the cover with the two top screws. Use a T20 Torx screwdriver.
