4.2 Accessing the power connections
CAUTION: Whenever you access the mains board and thus remove the net input cover, make sure
the projector is disconnected from the power net.
Required tools
Torx screwdriver T20
How to access
1. Remove the right side cover of the projector.
2. Remove the two screws (reference 2) of the net input cover (reference 1). Use a T20 Torx screwdriver.
3. Remove the cover.
Electrical connections are now accessible.

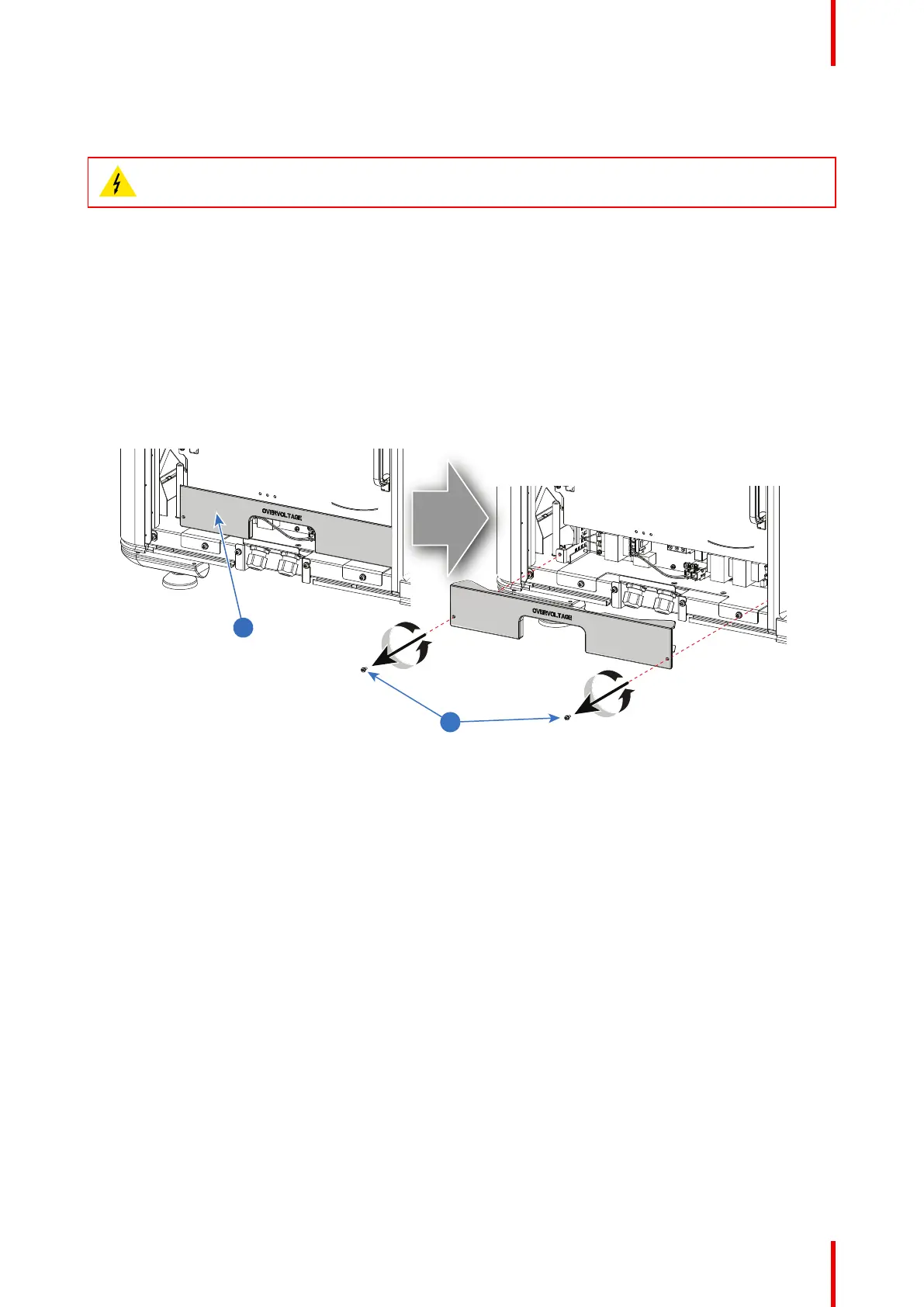

Image 4–5 Removal of the net input cover
Physical installation projector
