4.5 Installing air exhaust adapter (Optional)
About the optional air exhaust adapter
The air exhaust adapter is an optional part that allows the projector to be connected to an air exhaust system
in order to increase its cooling. This is an optional part that need to be ordering separately. Depending the
installation requirement, the air ring direction where the extraction duct need to be connected can be put
upward or backward.
Required tools
• Socket wrench 17 mm
• Socket wrench 7mm
• Torx screwdriver T20
How to install
1. Remove the exhaust adapter from the packaging and examine the metal parts to make sure there is no
corrosion or structural damage.
Note: Put aside the 4 small packages containing the brackets and fixing screws supplied in the
box. Take care not to throw them away with the protecting foam and packaging.
2. Mount top holders with exhaust adapter. Fasten the each holder on the exhauster with the two nuts
provided in the kit. Use a Socket wrench 7mm.

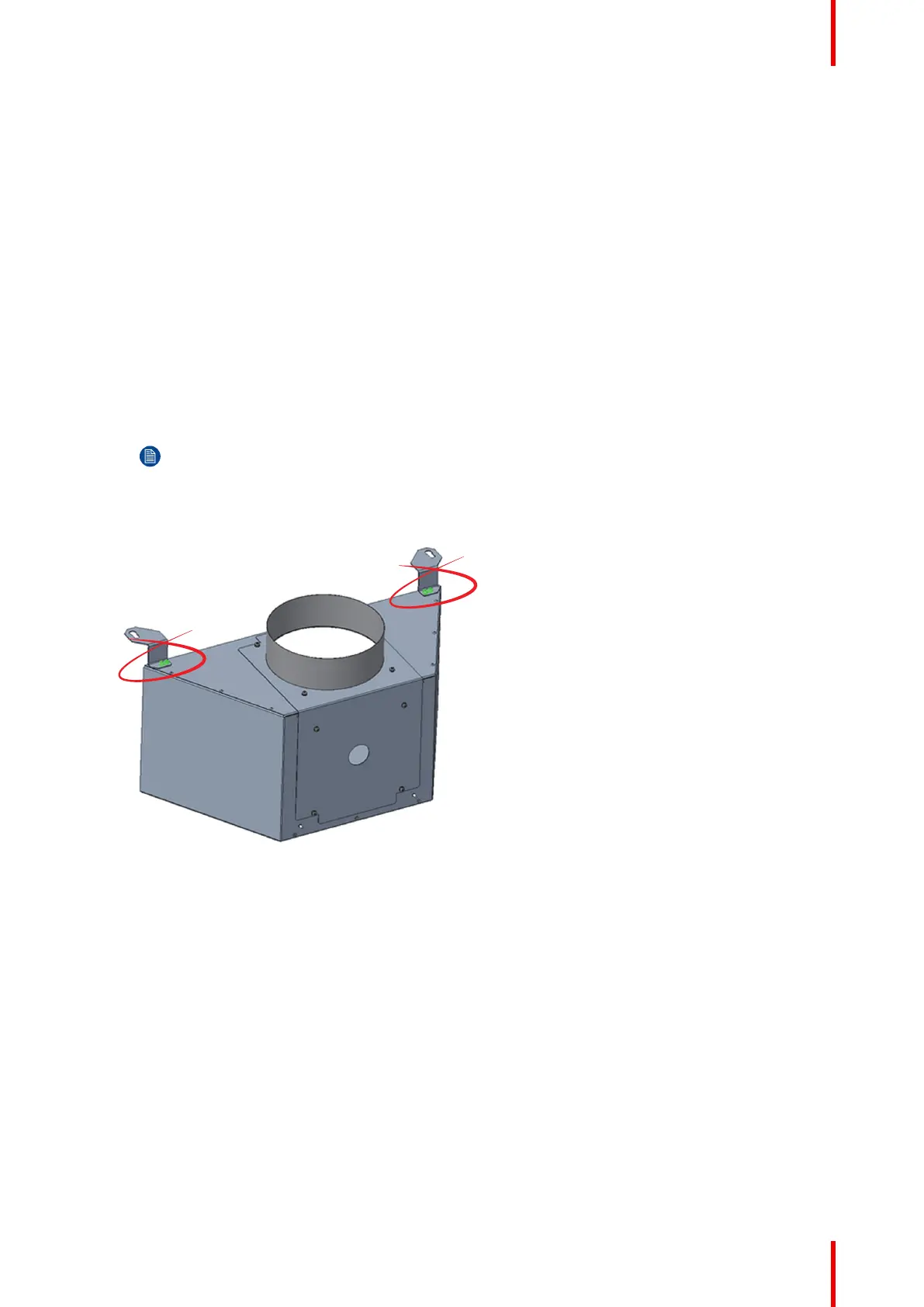

Image 4–9
3. Hang the exhaust adapter onto the projector. Fasten the each holder on the projector with the one M10
Hex head screws provided in the kit. Use Socket wrench 17 mm.
Physical installation projector
