Barco SP2K-S

R5913197 /02 SP2K-S50

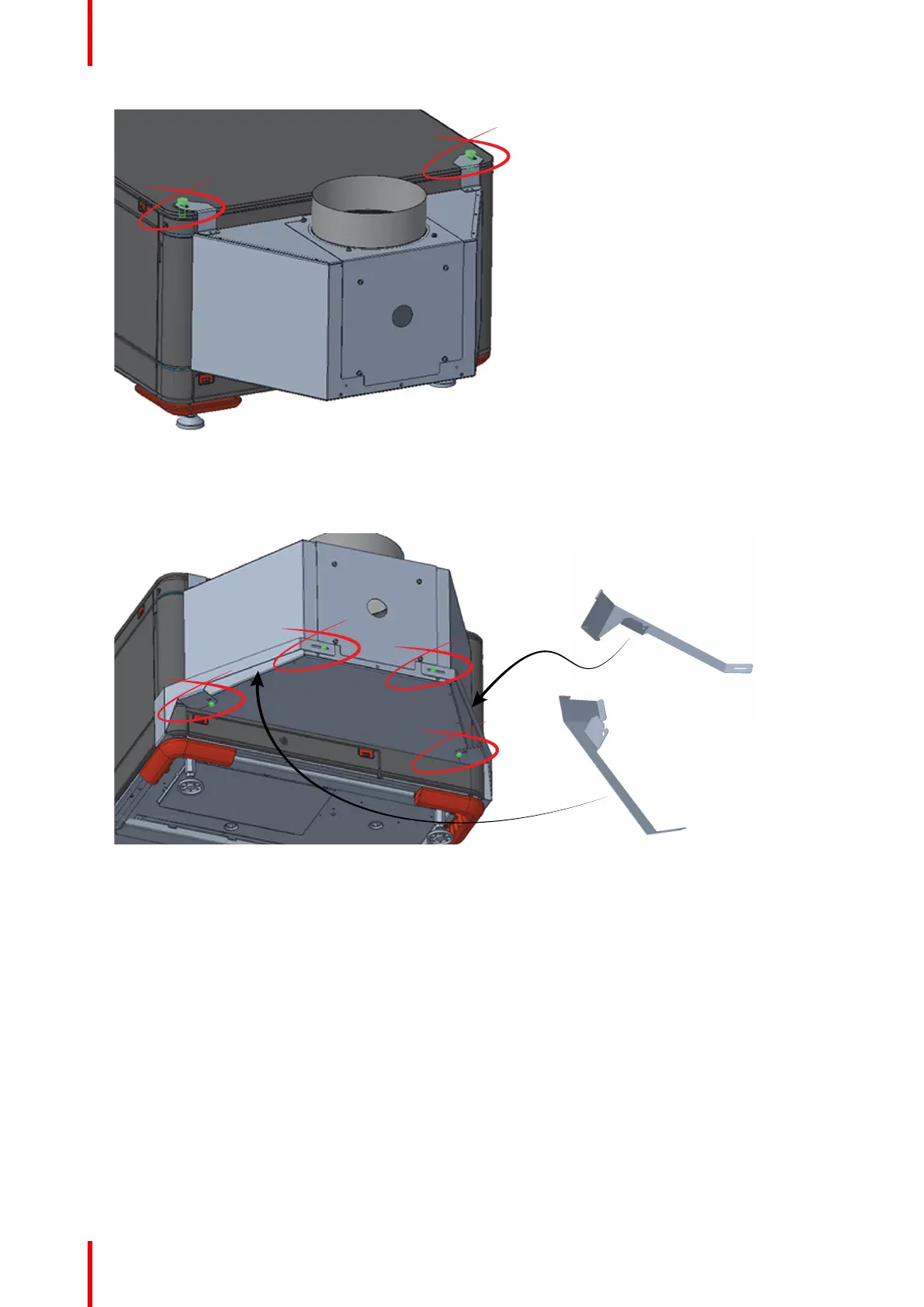

Image 4–10
4. Mount bottom holders. Fasten the each holder on the exhauster with the two nuts provided in the kit. Use a
Socket wrench 7mm.
Image 4–11
Little bending feature of bottom holders should be put behind the rear cover.
Physical installation projector
