12.8 Mounting the top cover
Required tools
Torx screwdriver T20
How to mount
1. Place the top cover (reference 1) on top of the projector. Use guides (reference 2) to orient correctly the
cover.
2
3
1

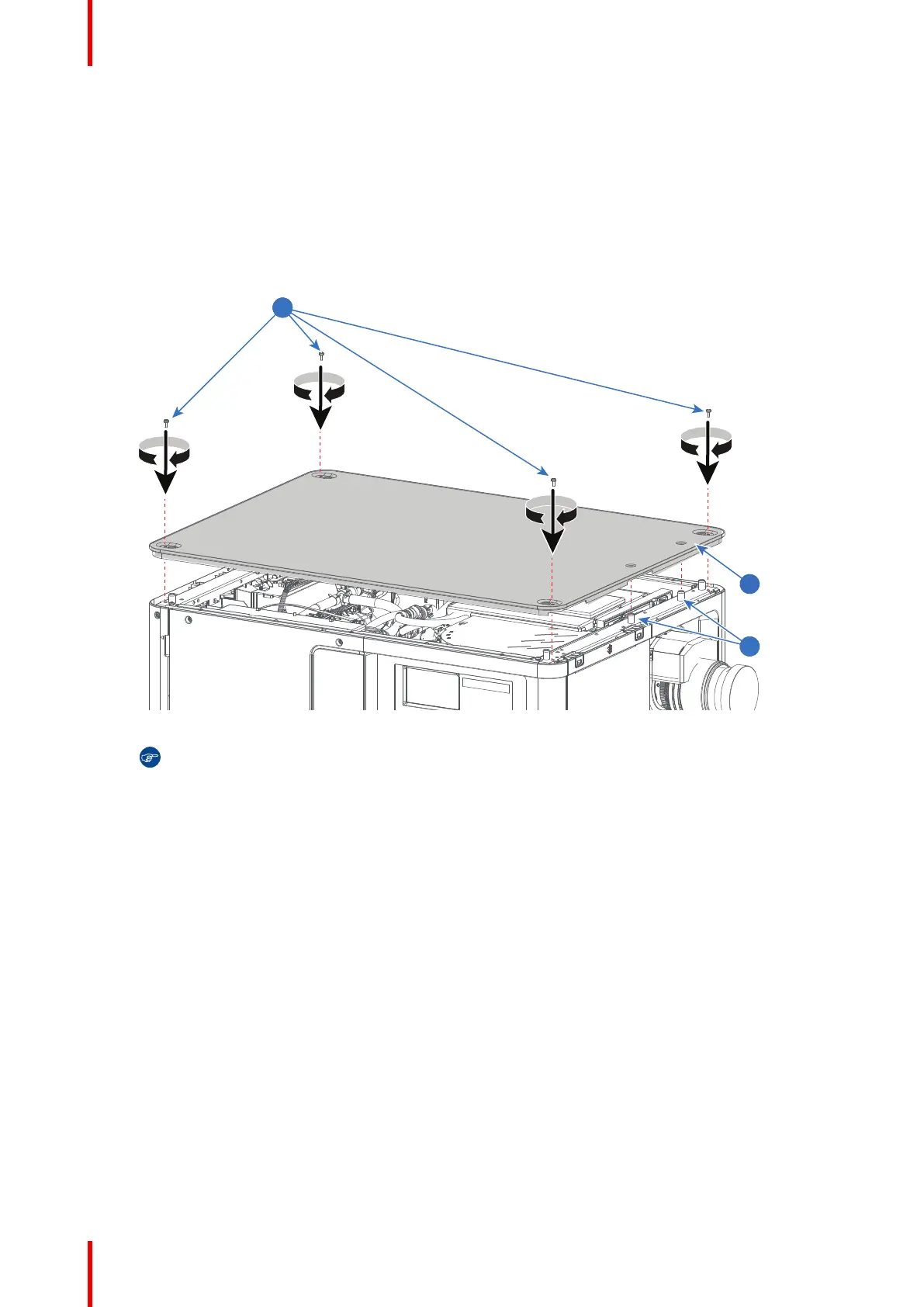

Image 12–14 Mounting the top cover
Tip: The top cover has been designed it can be mounted in only one way.
2. Fasten the top cover with the four screws (reference 3). Use a T20 Torx screwdriver.
