Scheimpflug adjustment steps

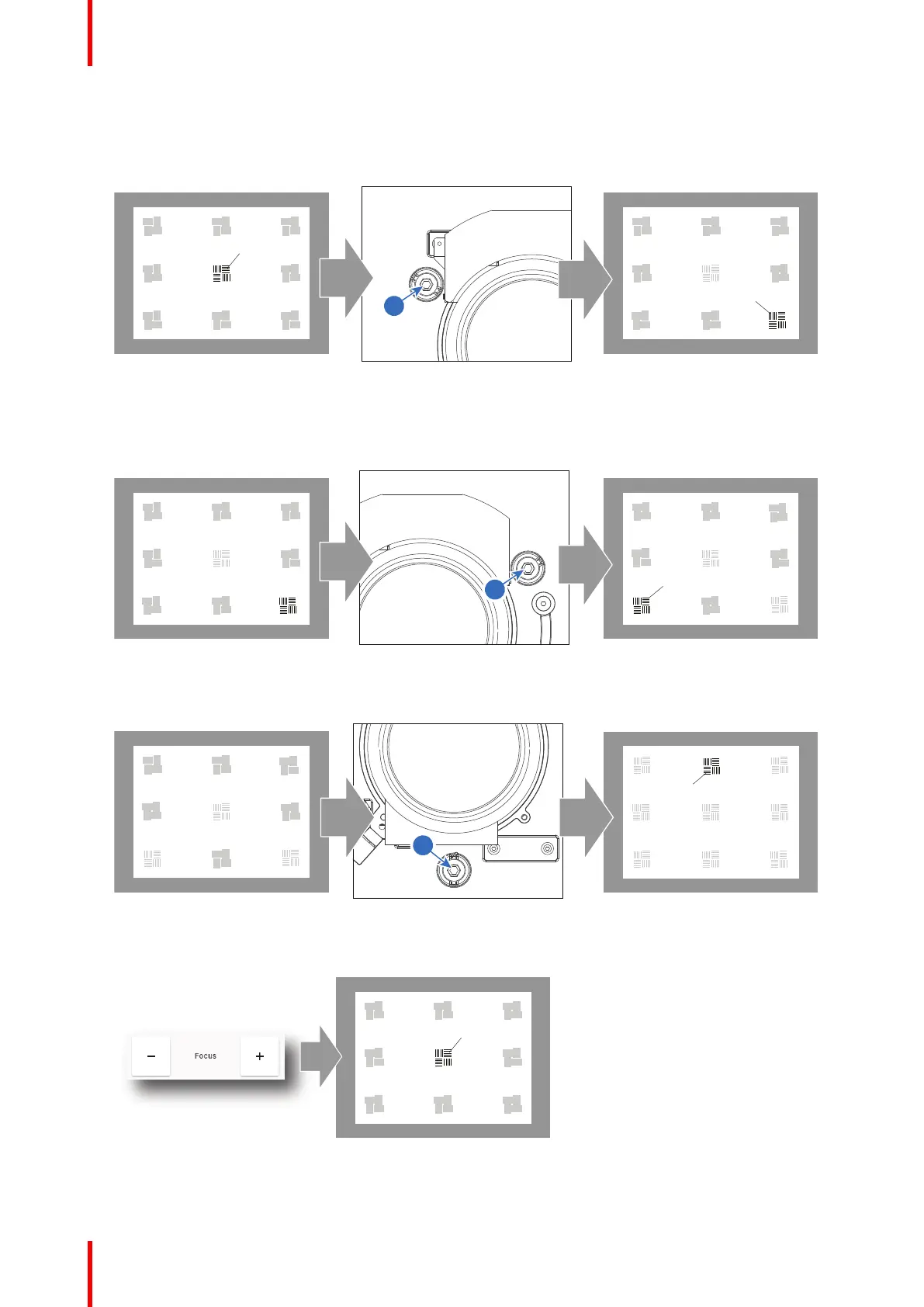

1. Sharpen the image at the bottom right corner of the screen by turning the upper left Scheimpflug
adjustment screw either clockwise or counterclockwise (reference 1 ). Use a 5 mm Allen wrench.
F
F
1
Image 5–14
As a result of this action, the focus in the center will fade a bit. This is expected behavior.
2. Sharpen the image at the lower left corner of the screen by turning the upper right Scheimpflug adjustment
screw (reference 2 ).
F
2
Image 5–15
3. Sharpen the image at the top center of the screen by turning the lower Scheimpflug adjustment screw
(reference 3 ).
F
3
Image 5–16
4. Optimize the focus of the projected image in the center of the screen using the focus buttons in the
“Control – Light, Dowser, Lens menu”.
F
Image 5–17
5. Repeat from step 1 until the projected focus pattern is as sharp as possible in the center, left, right, top and
bottom of the screen.
