17
925.916.2 - IT
ISTRUZIONI DESTINATE ALL’INSTALLATORE

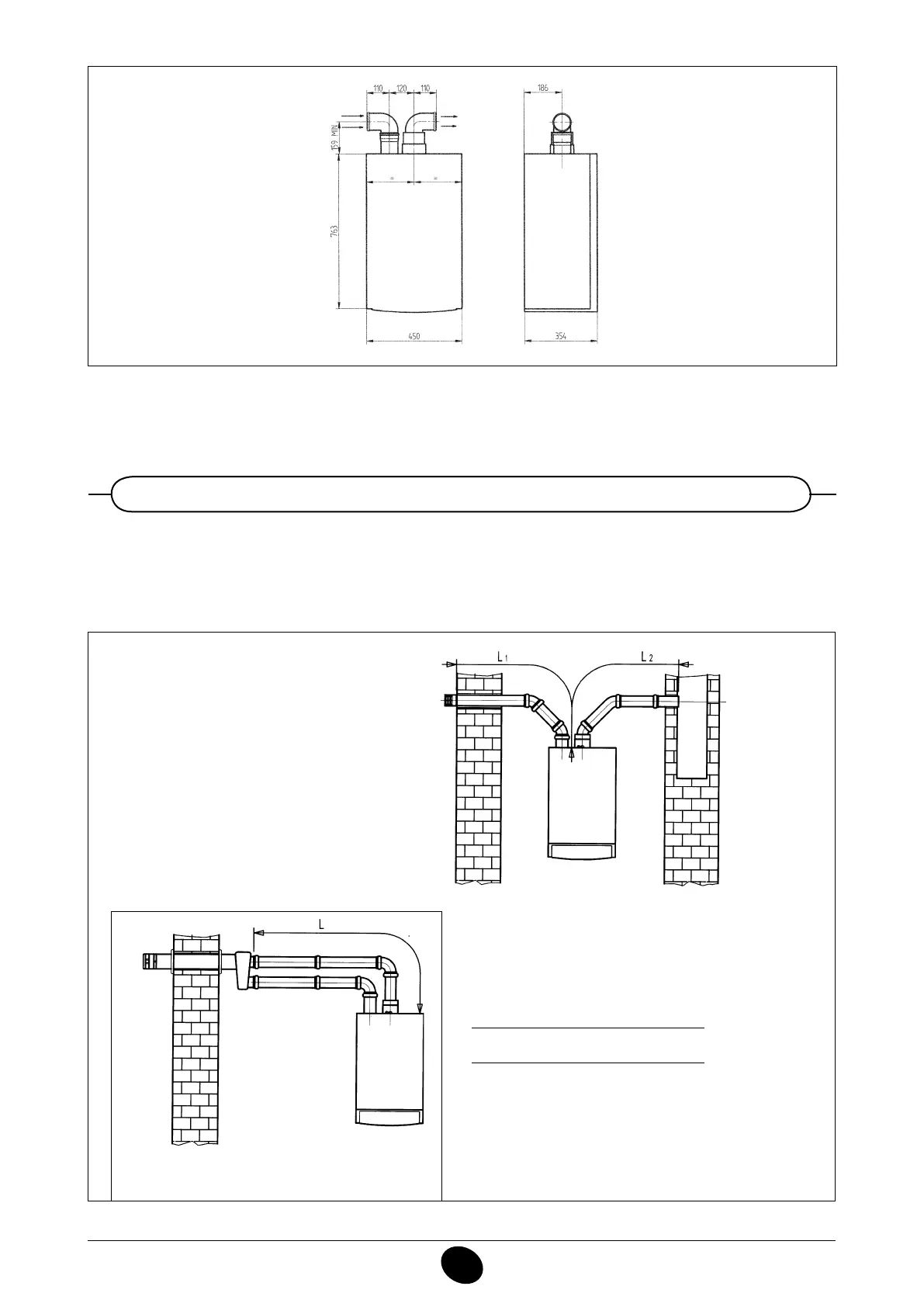

14.4 ESEMPI D’INSTALLAZIONE CON CONDOTTI SEPARATI ORIZZONTALI
IMPORTANTE - La pendenza minima, verso la caldaia, del condotto di scarico deve essere di 1 cm per metro di
lunghezza.
Assicurarsi che i condotti di scarico ed aspirazione dell’aria siano ben ssati alle pareti.
0803_2403 / CG_2055
(L1 + L2) max = 80 m
L max = 15 m
0506_0805
010828_0600
Il condotto di aspirazione deve avere
una lunghezza massima di 15 metri.
L’inserimento di una curva a 90° riduce la lunghezza totale del condotto di 0,5 metri.
L’inserimento di una curva a 45° riduce la lunghezza totale del condotto di 0,25 metri.
