Becker BD406 - Dimensions; BD406 with Control Head; Figure 13: Dimensions - BD406 with Control Head

Installation
Becker Avionics
Dimensions
40 BD406/PBD406 DV16401.03 Issue 04 May 2021
2.4 Dimensions
BD406 with Control Head
Dimensions mm (inch)

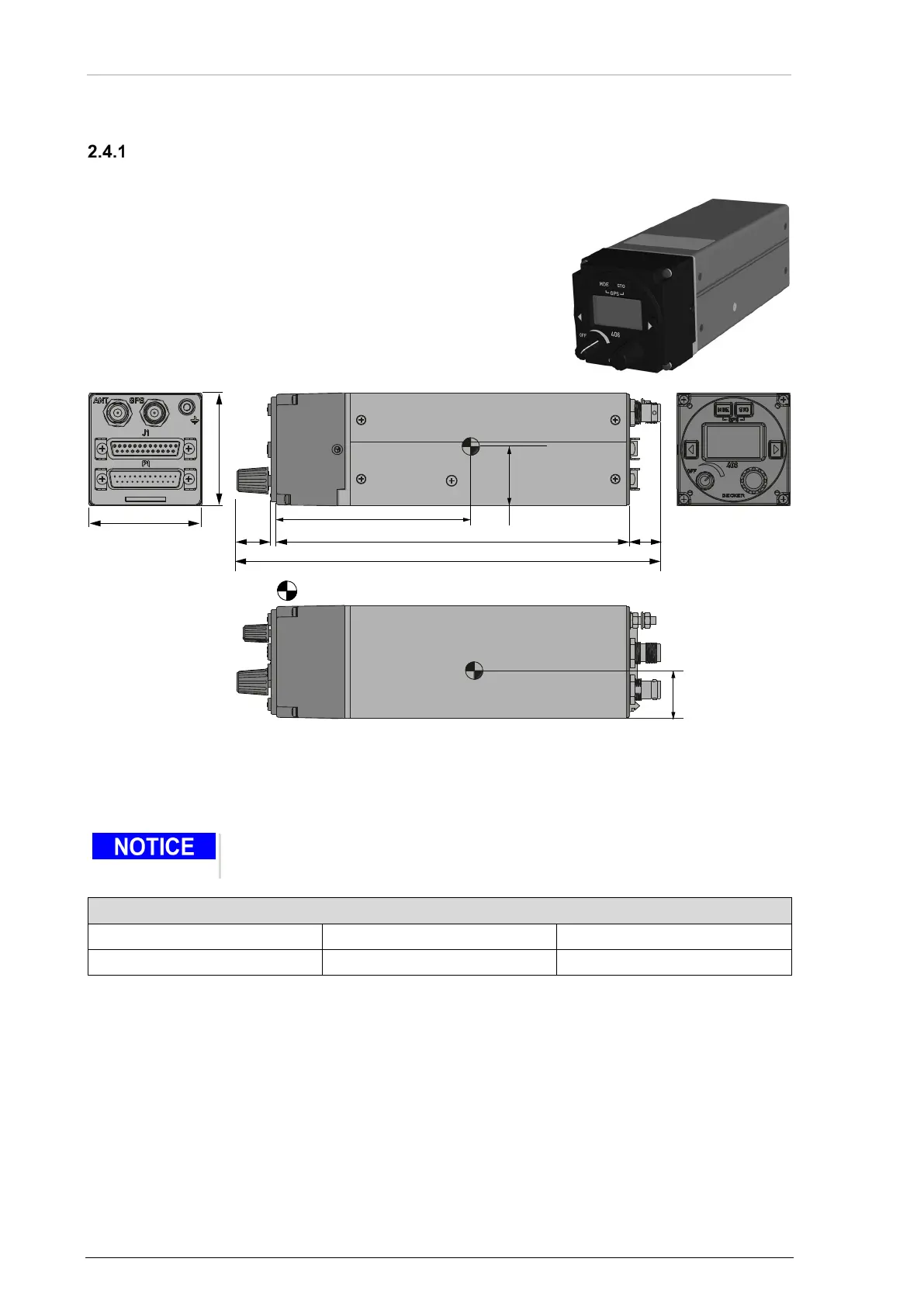

Figure 13: Dimensions - BD406 with Control Head
"Center of Gravity" for BD406
Tolerance: ± 5 mm.
Permitted deviation for dimensions without tolerances: DIN ISO 2768 T1 C (dimensions in mm)
xx...6 (±0.3)
>30...120 (±0.8)
>400...1000 (±2.0)
>6...30 (±0.5)
>120...400 (±1.2)
>1000...2000 (±3.0)
CENTER OF GRA
VITY
230 (9)
COG
COG
191.5 (7.5)
105 (4.1)
32
(1.3)
26
(1.0)
18.5
(0.7)
17
(0.7)
61 (2.4)
61 (2.4)
