Becker BD406 - Pbd406; Figure 16: Dimensions - PBD406

Becker Avionics
Installation and Operation
Dimensions
DV16401.03 Issue 04 May 2021 BD406/PBD406 43
PBD406
Dimensions mm (inch)

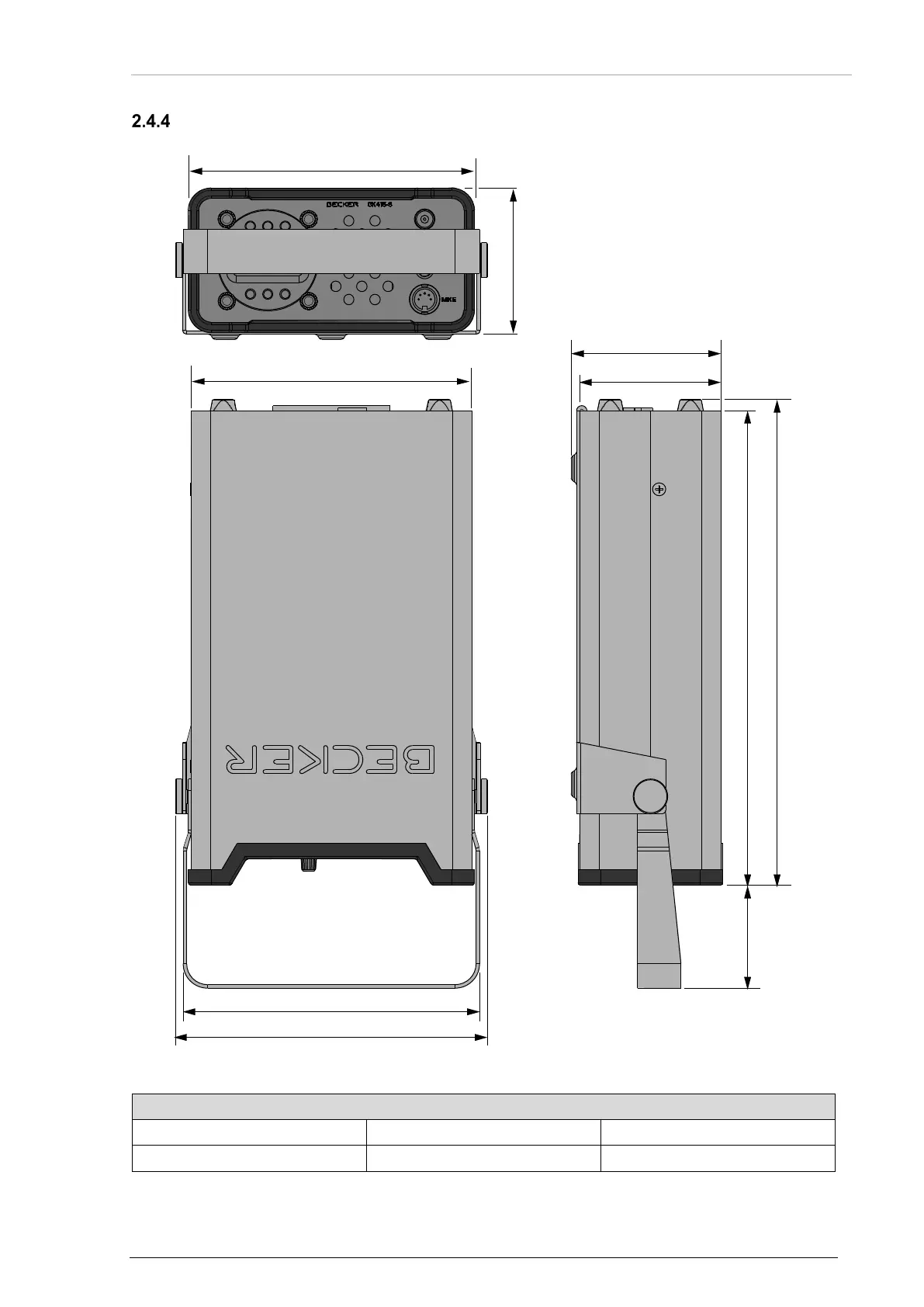

Figure 16: Dimensions - PBD406
Permitted deviation for dimensions without tolerances: DIN ISO 2768 T1 C (dimensions in mm)
xx...6 (±0.3)
>30...120 (±0.8)
>400...1000 (±2.0)
>6...30 (±0.5)
>120...400 (±1.2)
>1000...2000 (±3.0)
84 (3.3)
160.5 (6.3) 80.5 (3.2)
86 (3.4)
164.5 (6.5)
176 (6.9)
173 (6.8)
270 (10.3)
277.5 (10.9)
58.5 (2.3)
