Becker BD406 - BD406 Without Control Head with Mounting Kit MK4401; Figure 15: Dimensions - BD406 Without Control Head with Mounting Kit MK4401

Installation
Becker Avionics
Dimensions
42 BD406/PBD406 DV16401.03 Issue 04 May 2021
BD406 without Control Head with Mounting Kit MK4401
Dimensions mm (inch)

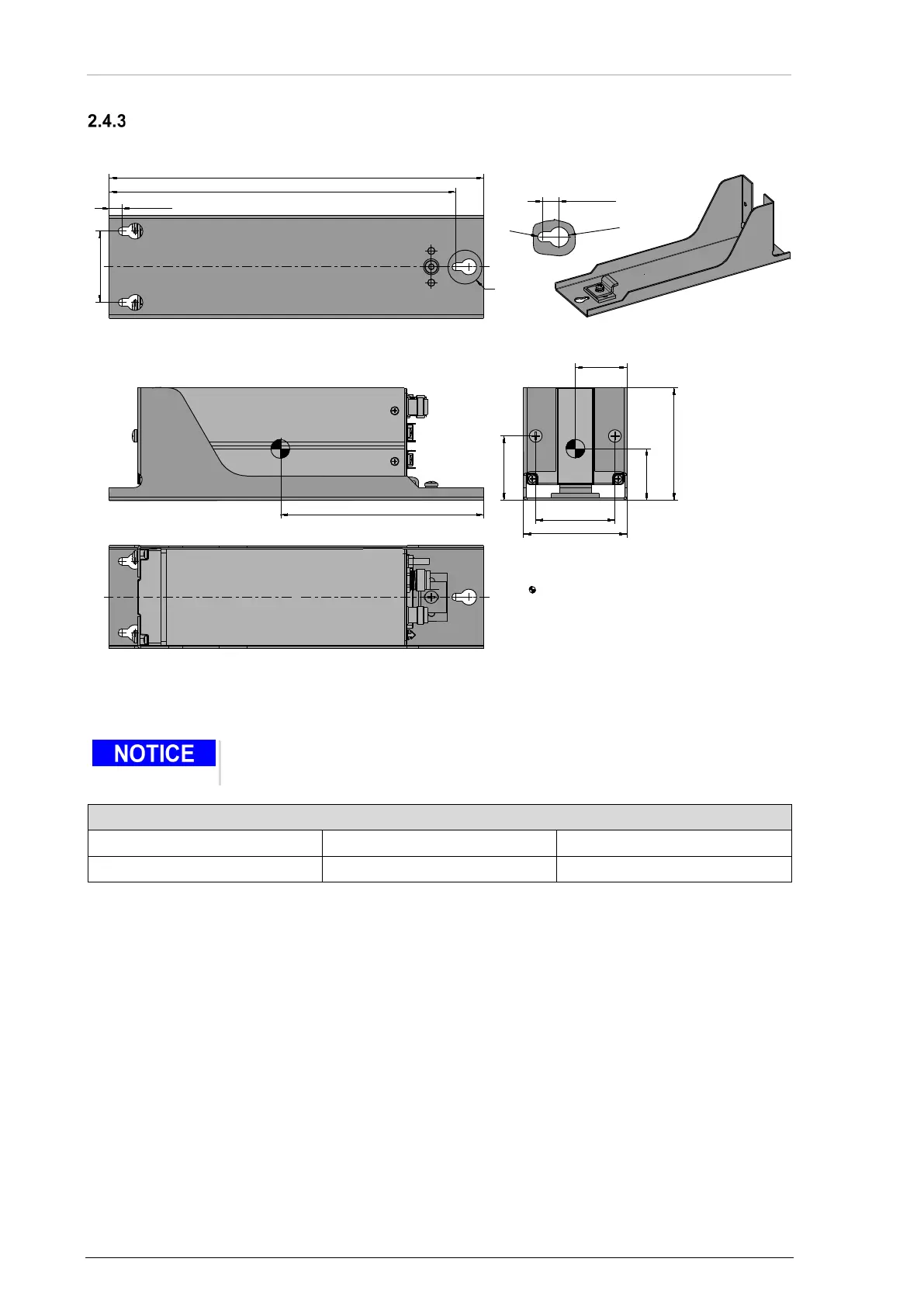

Figure 15: Dimensions - BD406 without Control Head with Mounting Kit MK4401
"Center of Gravity" for BD406 with mounting kit MK4401.
Tolerance: ± 5 mm.
Permitted deviation for dimensions without tolerances: DIN ISO 2768 T1 C (dimensions in mm)
xx...6 (±0.3)
>30...120 (±0.8)
>400...1000 (±2.0)
>6...30 (±0.5)
>120...400 (±1.2)
>1000...2000 (±3.0)
CENTER OF GR
AVITY
236 (9.29)
8 (0.31)
45 (1.77)
8.1 (0.32)
218.5 (8.60)
32.5
(1.28)
32.5
(1.28)
50 (1.97)
65 (2.56)
71.1 (2.8)
40.5
(1.59)
128 (5.04)
Ø5
(Ø0.19)
Ø10
(Ø0.39)
A
A
