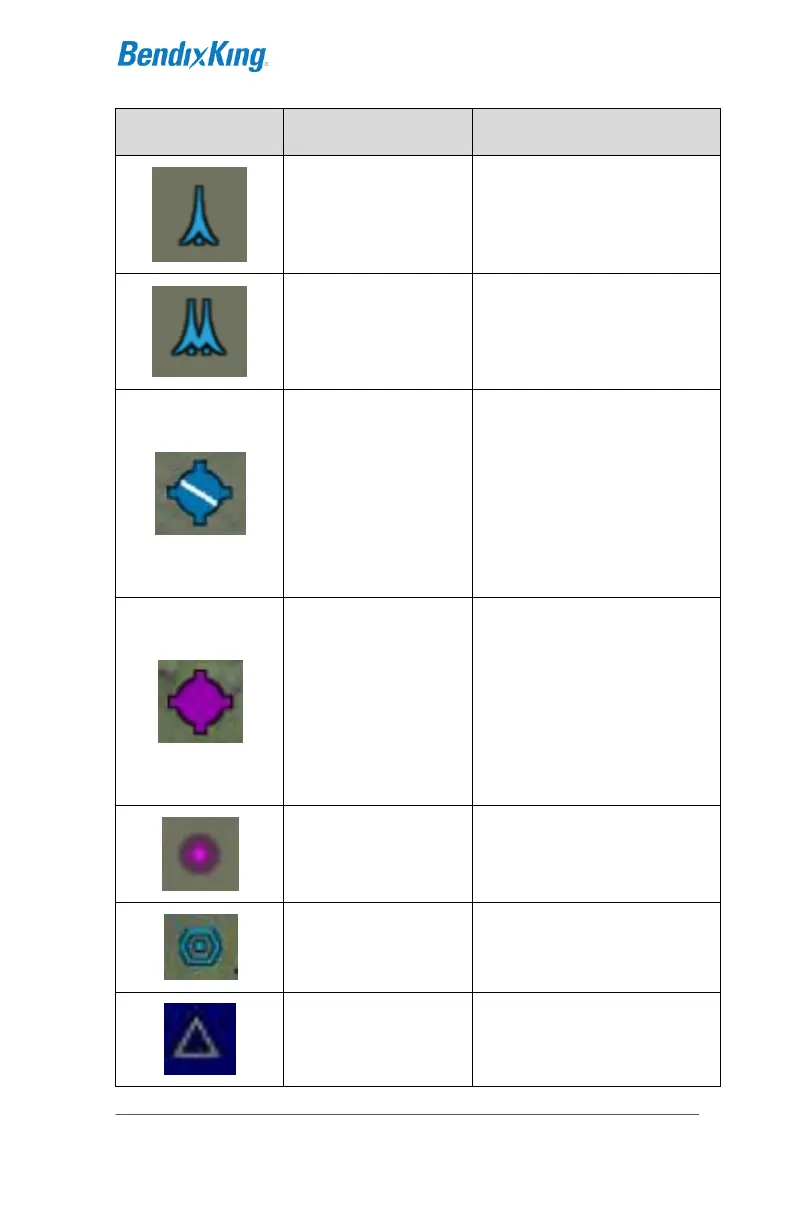

Map Symbol
Item
Description
Single high
obstacle
1000’ AGL or higher
(blue)
Grouping of high
obstacles
2 or more high obstacles
(1000’ AGL or higher)
within 1 nm of each other
(blue)
Towered airport,
hard
Towered airport,
soft
Towered airport,
water
If runway orientation is
known, they are also
depicted on the airfield
symbol (blue with white
runway)
Non-towered
airport, hard
Non-towered
airport, soft
Non-towered
airport, water
If runway orientation
known, they are also
depicted on the airfield
symbol (magenta)
NDB
All NDBs in nav
database (magenta
diamond)
VOR
All VORs in nav
database (blue)
Intersection
All intersections in nav
database (gray)
