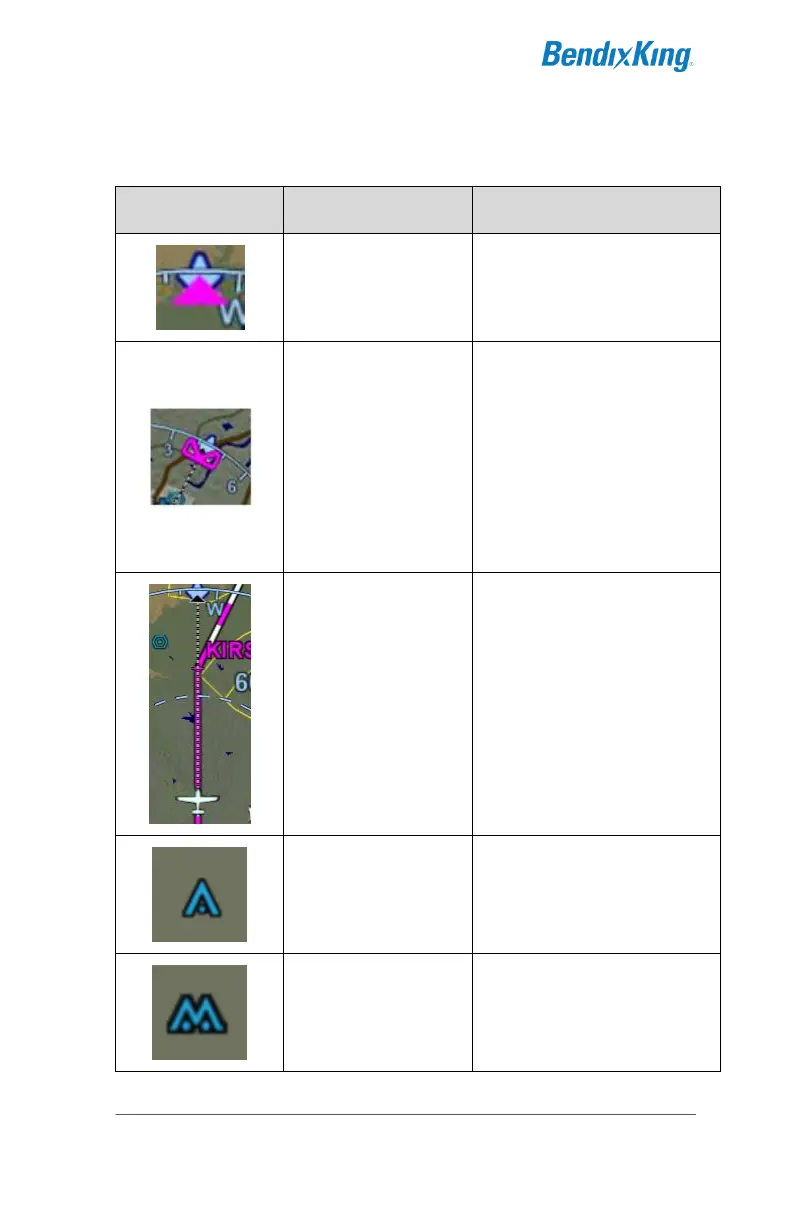

OTHER MAP FEATURES
The table below defines other map features.
Map Symbol
Item
Description
Desired Track
Solid magenta triangle
on inside edge of map
compass rose
Heading Select
(“Heading Bug”)
For those installations
where the AeroNav is
receiving heading select
(aka heading “bug”) data,
a hollow magenta
heading bug is displayed
for reference on the
inside edge of the map
compass rose
Projected track
line
Dashed white line
indicating actual track.
Connects ownship
symbol with compass
rose.
Single Low
Obstacle
200’ AGL up to 1000’
AGL (blue)
Grouping of low
obstacles
2 or more low obstacles
(200’ AGL up to 1000’
AGL) within 1 nm of each
other (blue)
