AeroNav 900/880 Series Pilot’s Guide
89000039-010
2-12 SVS Subsystem Rev 1 May 2019
SYNTHETIC VISION TERRAIN AWARENESS
Any terrain that is within a 10nm radius of aircraft position and
between 100’ below aircraft altitude and 1000’ below aircraft
altitude will generate yellow hatched indications on the SynVis
scene and the map pages. Any terrain that is within a 10nm
radius of the aircraft position and is 100’ below aircraft to anything
above aircraft altitude will generate red hatched indications on the
SynVis scene and the map pages.
Synthetic Vision terrain awareness can be triggered by either
terrain or obstacles.

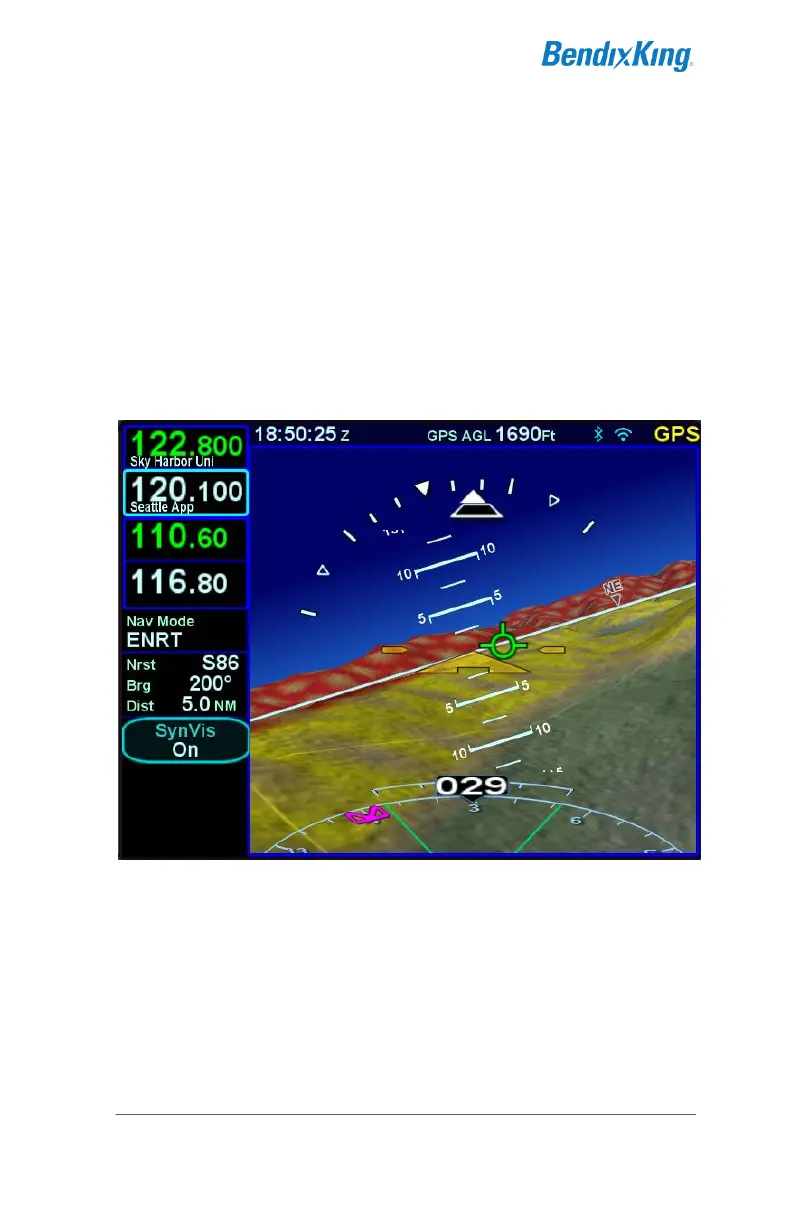

SVS with Terrain Awareness
