AeroNav 900/880 Series Pilot’s Guide
89000039-010
1-14 System Overview Rev 1 May 2019

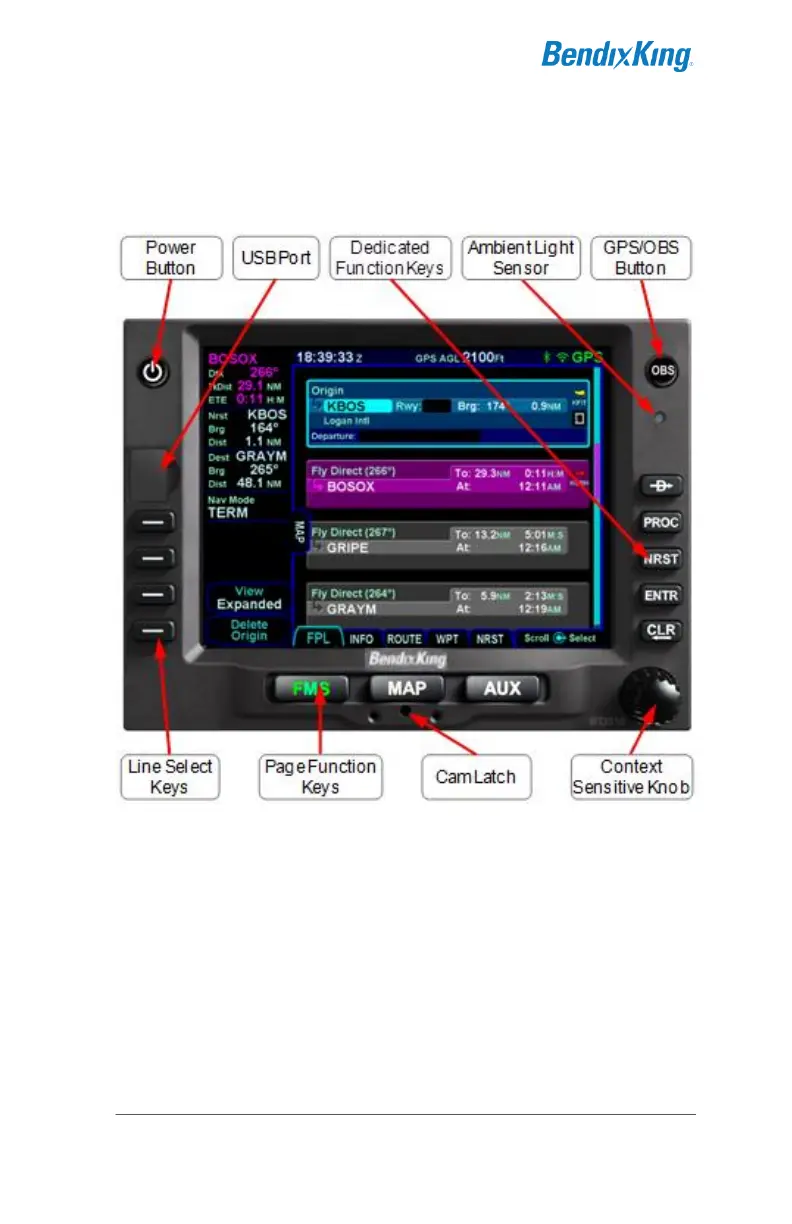

AERONAV 880/AERONAV 905 BEZEL LAYOUT
The AeroNav 880 and AeroNav 905 have the same bezel layout
except that the AeroNav 905 has one extra Page Function Key
labeled "SVS" to the left of the FMS key.
Starting in the top left corner and working counter-clockwise
around the bezel, the AeroNav has:
Power/Volume/Squelch knob †
Frequency Swap dedicated button †
USB port for database updates, datalog downloads,
software updates and powering USB devices in-flight
Four (4) Line Select Keys (LSKs) that are page
dependent with soft key labels adjacent to each
