AeroNav 900/880 Series Pilot’s Guide
89000039-010
2-8 SVS Subsystem Rev 1 May 2019

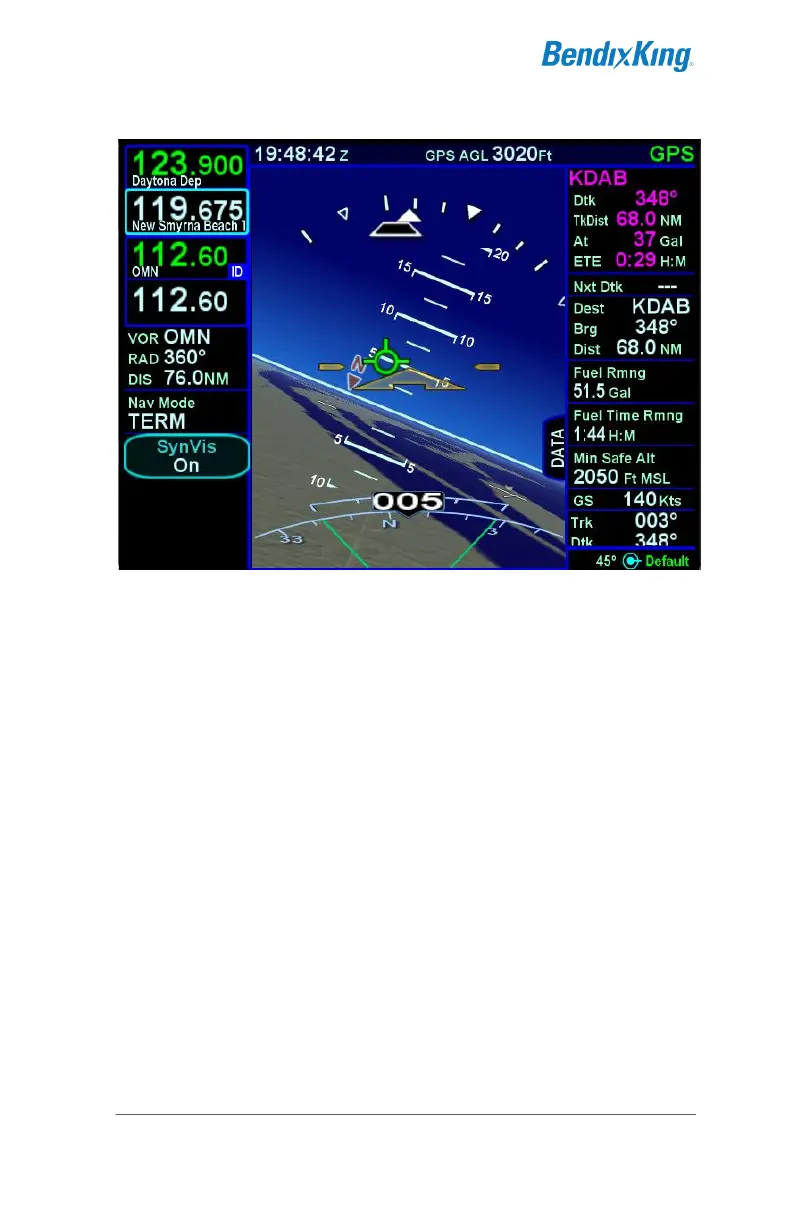

SynVis with Datablocks
SYNTHETIC VISION OBSTACLES
Obstacles will be depicted in the SynVis scene out to 12nm.
Standard high, low and grouping symbology is used to depict
obstacles.
Any obstacle in the database within a 5nm radius of the aircraft
position and whose top is within 2000’ vertically (above or below)
of the aircraft altitude will generate a cyan (blue) threat bubble
over the obstacle on the SynVis scene.
