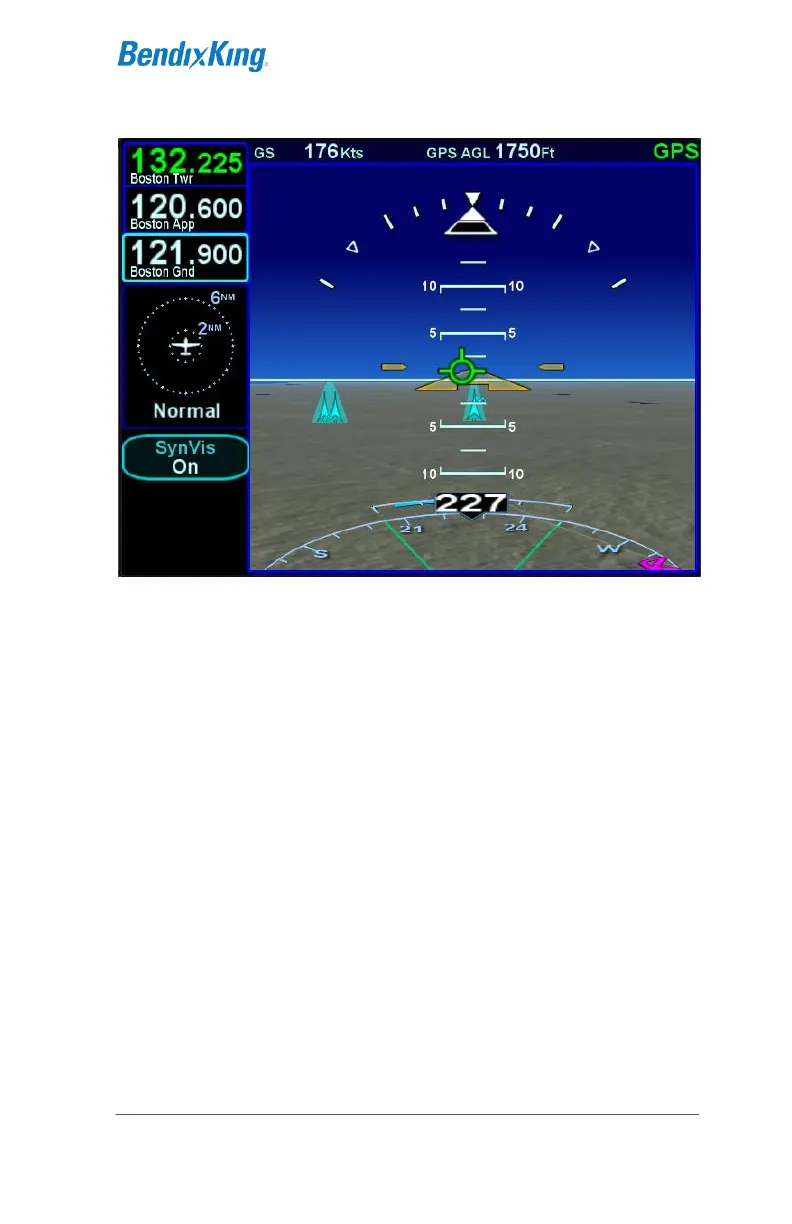

Blue Obstacle Threat Bubbles
Obstacles inside a 3nm radius of the aircraft position and whose
top is between 100’ below aircraft altitude and 1000’ below
aircraft altitude will generate a yellow threat bubble over the
obstacle on the SynVis scene and the map pages.
Obstacles inside a 1.5nm radius of the aircraft position and
whose top is between 100’ below aircraft to anything above
aircraft altitude will generate a red threat bubble over the obstacle
on the SynVis scene and the map pages.
