AeroNav 900/880 Series Pilot’s Guide
89000039-010
4-20 Map Subsystem Rev 1 May 2019
precipitation types and is overlaid on top of any other map features,
including terrain alerting.

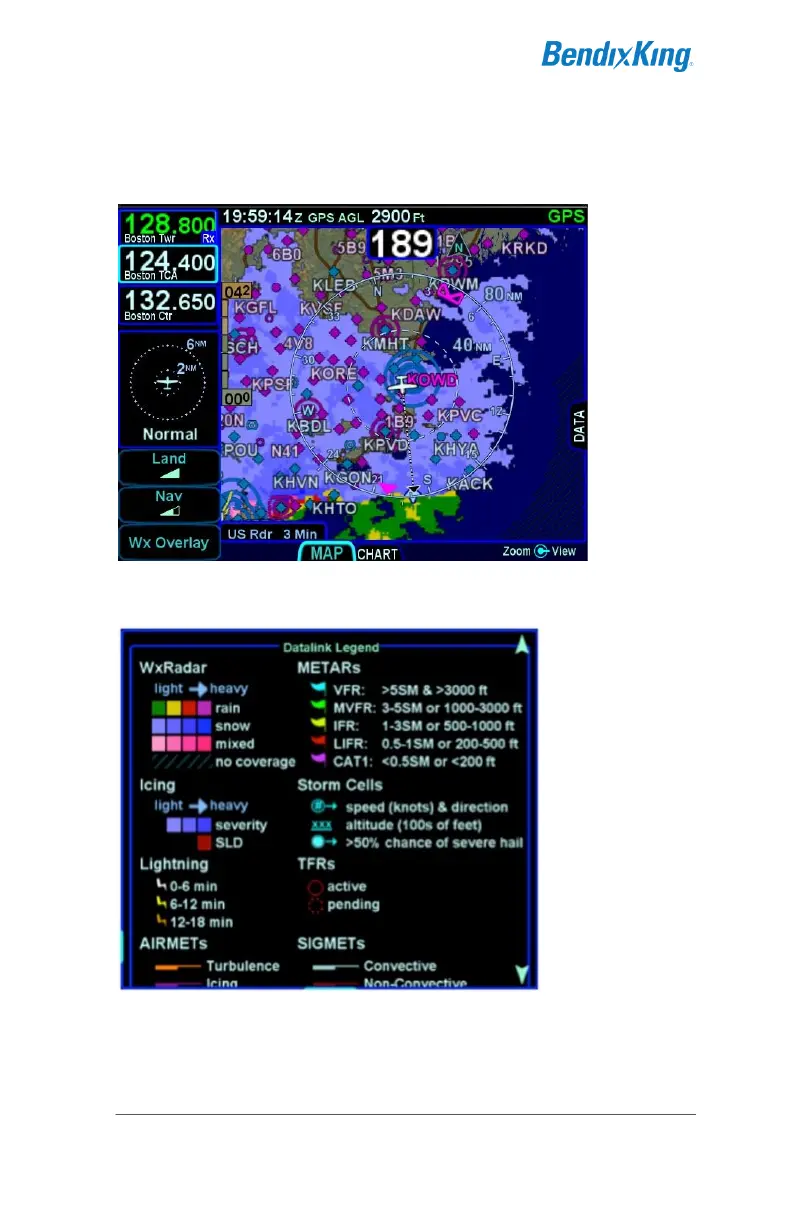

Datalink Precipitation Example
Weather Data Legend
At large map ranges beyond 250nm from the aircraft, small areas of
high-intensity RADAR returns may not be displayed; instead, larger
areas of surrounding lower-intensity RADAR returns will be shown.
