datablocks, either touch the "DATA" tab, or hold the right side of the
MAP button.

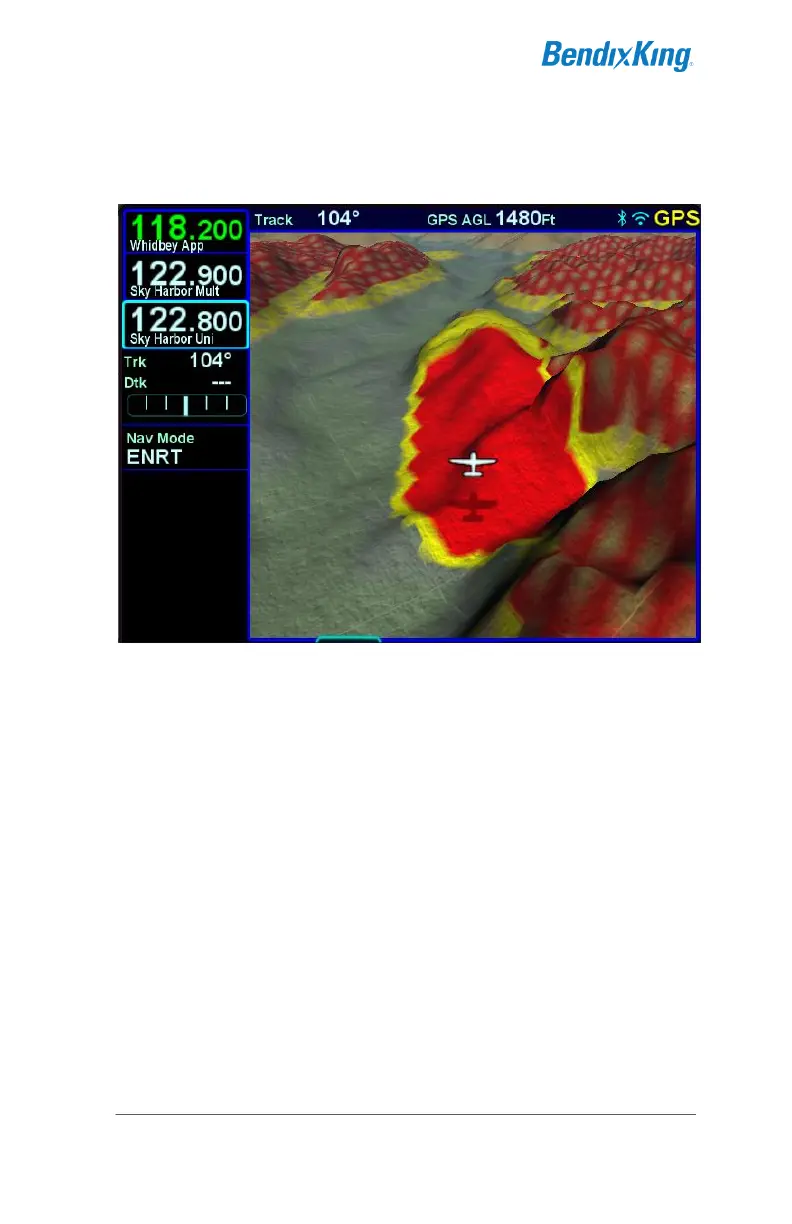

Terrain Awareness and FLTA in Map SVS View
Also like on the 2D map view, the active leg is depicted in solid
magenta, the next leg is a candy-striped magenta/white depiction
and downstream legs are depicted in white.
The active flight plan waypoint will be displayed as a magenta flag
pole and downstream waypoints are not depicted for map clutter
reasons. Fly-over waypoints typically depict the flight plan flying right
through/over the waypoint whereas Fly-by waypoints can turn inside
the waypoint.
