5.2 Technical description of the basic machine (series production equipment)

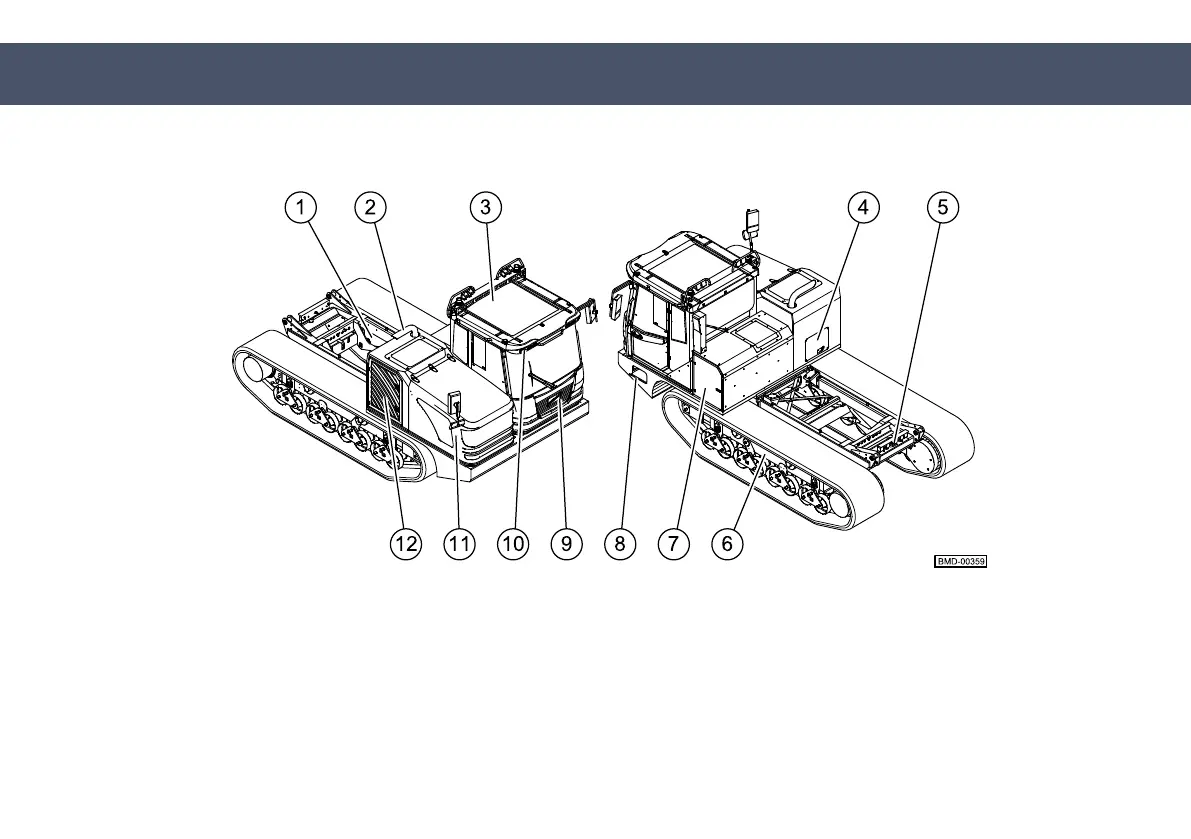

Fig. 5.2: Technical description of the basic machine
1 Frame 2 Exhaust system with particulate filter 3 Operator's cab
4 Hydraulic pump maintenance door 5 Rear lighting device 6 Track undercarriage
7 Tool box 8 Ladder 9 Wartungshaube Sicherungskasten
10 Front lighting device 11 Drive unit maintenance cover 12 Maintenance door on drive unit
50-020-1011-900_EN
1.0 - © 2/15/2017
108
5 Structure and function
5.2 Technical description of the basic machine (series production equipment)
