bergmann 4010 - Danger Area During Operation

3.19.1 Danger area during operation

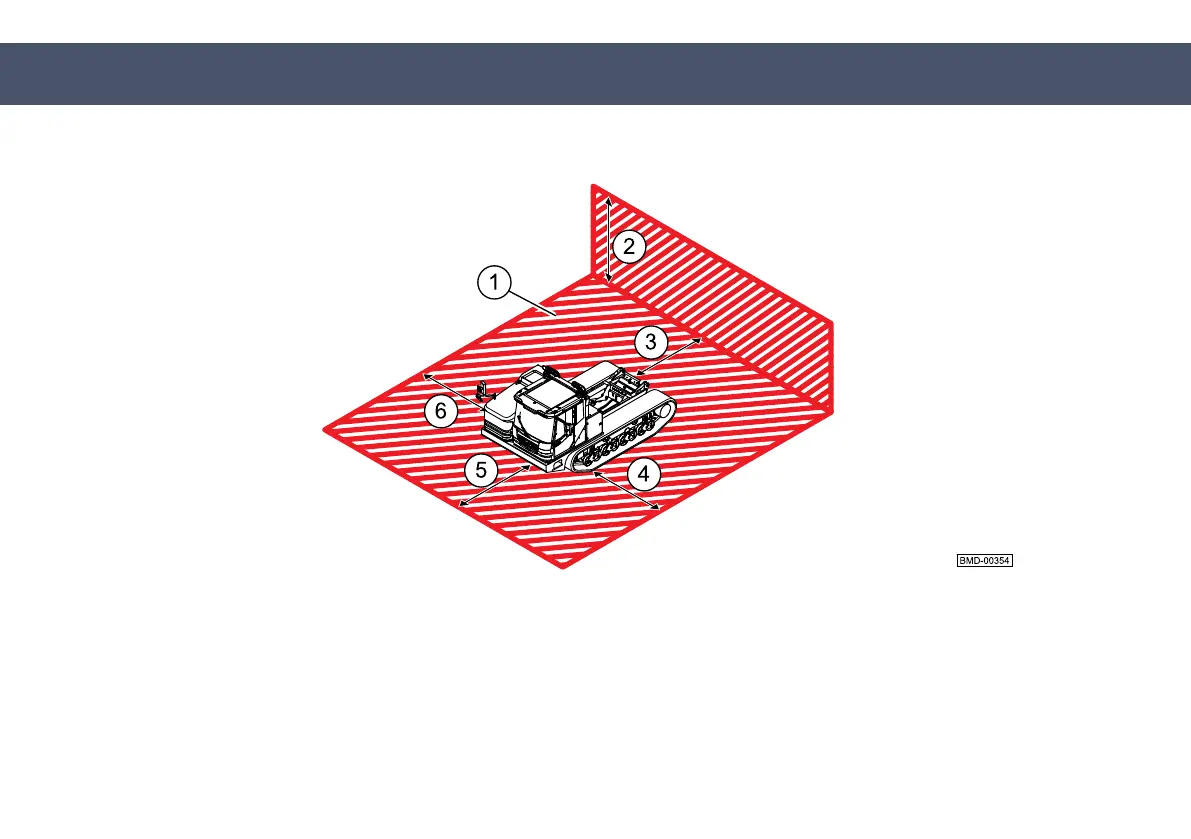

Fig. 3.4: Danger area of the machine during operation
1 Danger area 2 Minimum distance 5 m 3 Minimum distance 5 m
4 Minimum distance 3 m 5 Minimum distance 5 m 6 Minimum distance 3 m
