5.2.4 Electrical system
The electrical system is powered by a three-phase alternator on the drive
system and two batteries. The batteries are located behind the battery
maintenance doors in the toolbox.
Overview of electrical loads on the outside of the machine

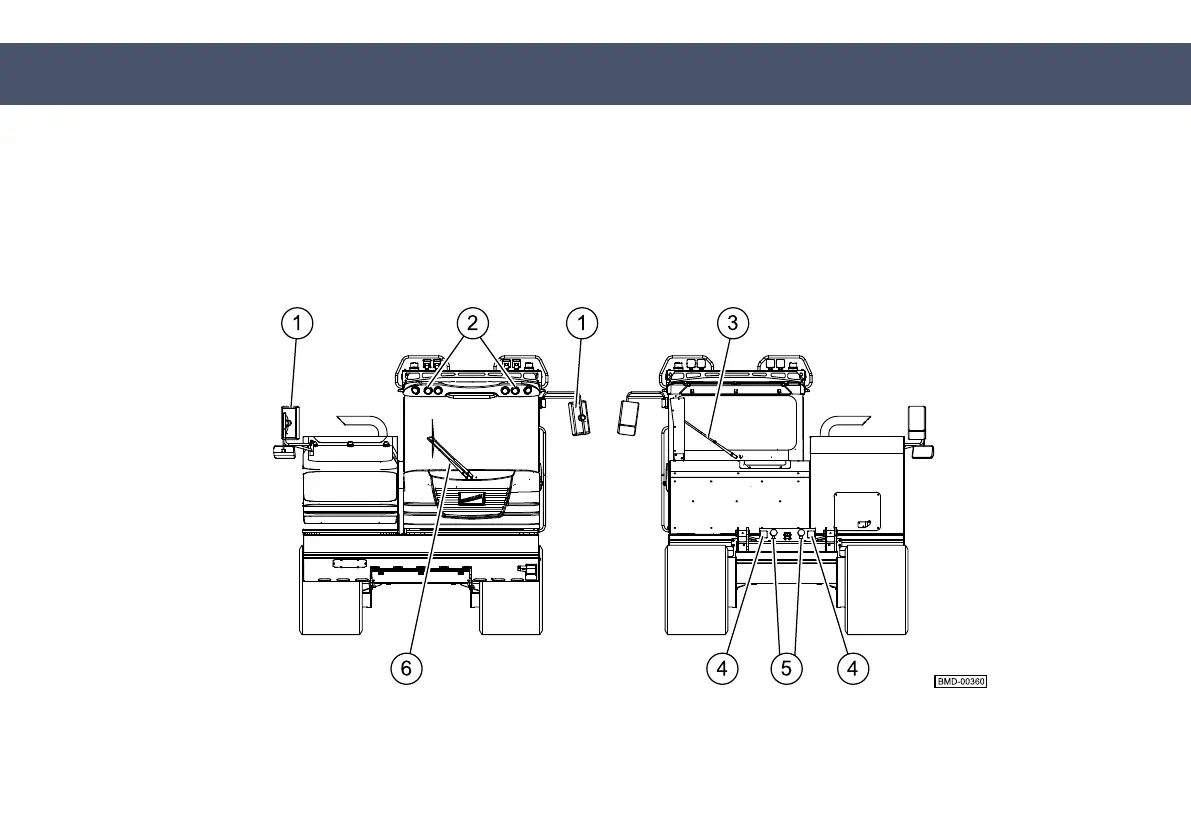

Fig. 5.7: Overview of electrical loads on the outside of the machine
