Guide wheel unit

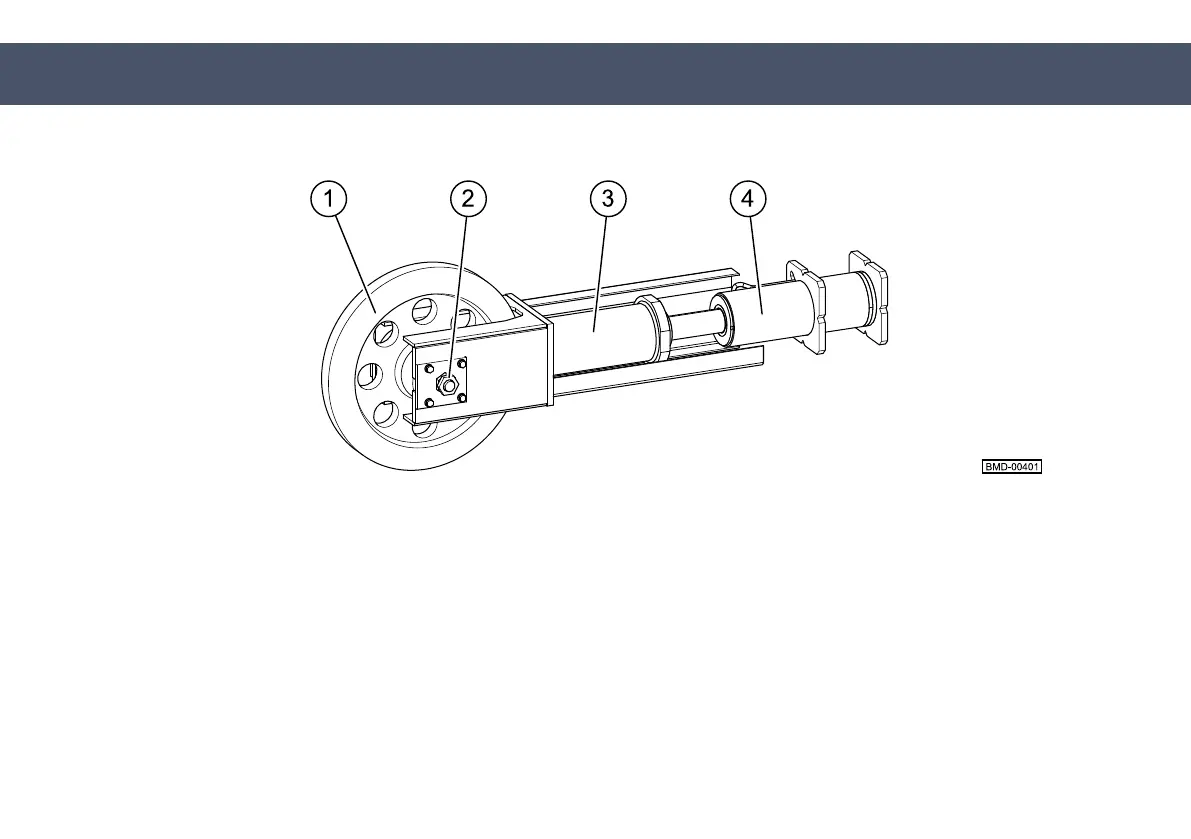

Fig. 5.4: Technical description of the guide wheel unit
1 Guide wheel 2 Guide 3 Elastometer
4 Tensioning cylinder
The guide wheel (1) mounted in the guide (2) is pressed against the cater‐
pillar track by a tensioning device.
