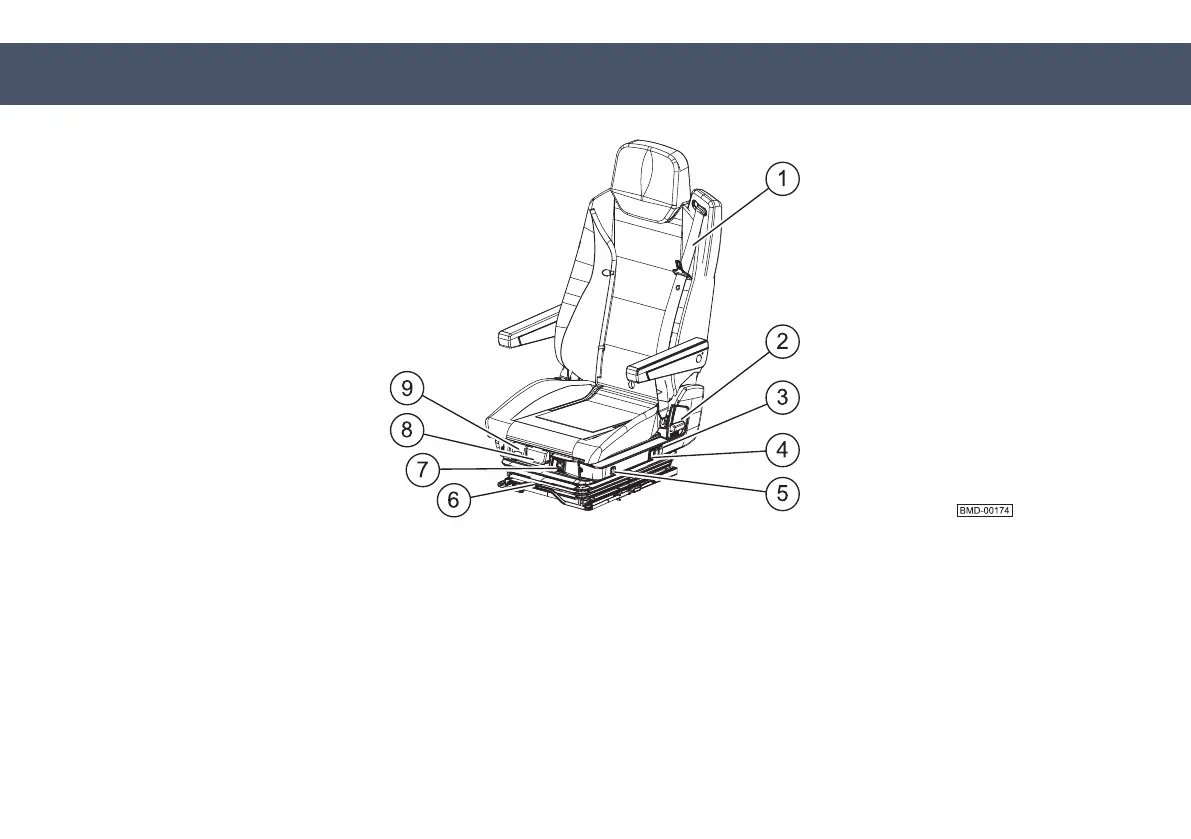

Fig. 8.2: Using the operator's seat
1 Safety belt 2 Backrest adjustment lever 3 Adjuster for lower lumbar support
4 Adjuster for middle lumbar support 5 Seat heater switch 6 Forward/back adjustment handle
7 Button for height and weight adjustment 8 Seat forward/back 9 Tilt seat
►
Adjust weight and height setting with the button (7).
n Up: Push button upwards.
n Down: Push button downwards.
