8.2.5.3 Instrument panel top

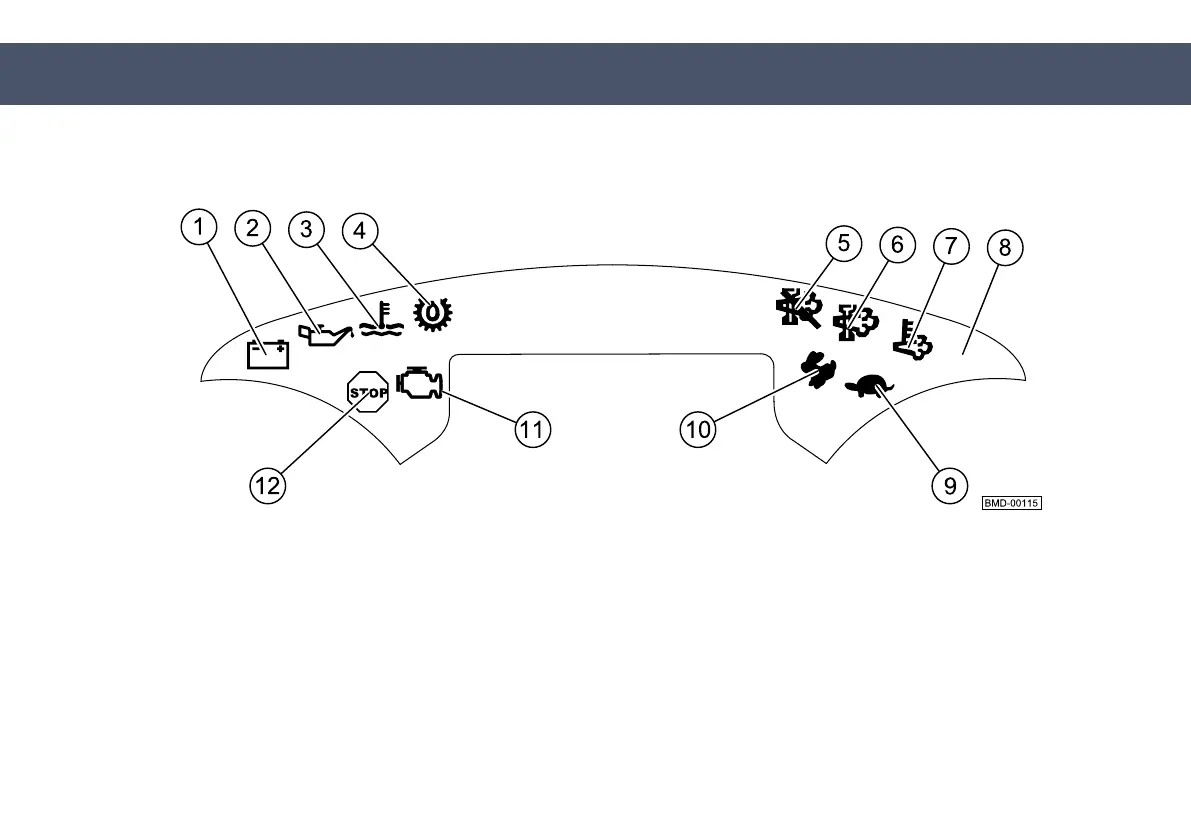

Fig. 8.16: Instrument panel top
1
Alternator
indicator light 2
Oil pressure
indicator light 3 not assigned
4 not assigned 5
DPF regeneration suppressed
indicator
light
6
Clean diesel particulate filter
indicator
light
7
Exhaust system overheated
indicator
light
8 not assigned 9
Working mode
indicator light
10
Transport mode
indicator light 11
Engine warning
indicator light 12
Engine stop
indicator light
