9.3.3 Checking the fill levels
Engine oil fill level indicator
►
Open the maintenance door on the drive unit (→ 9.2.1).
►

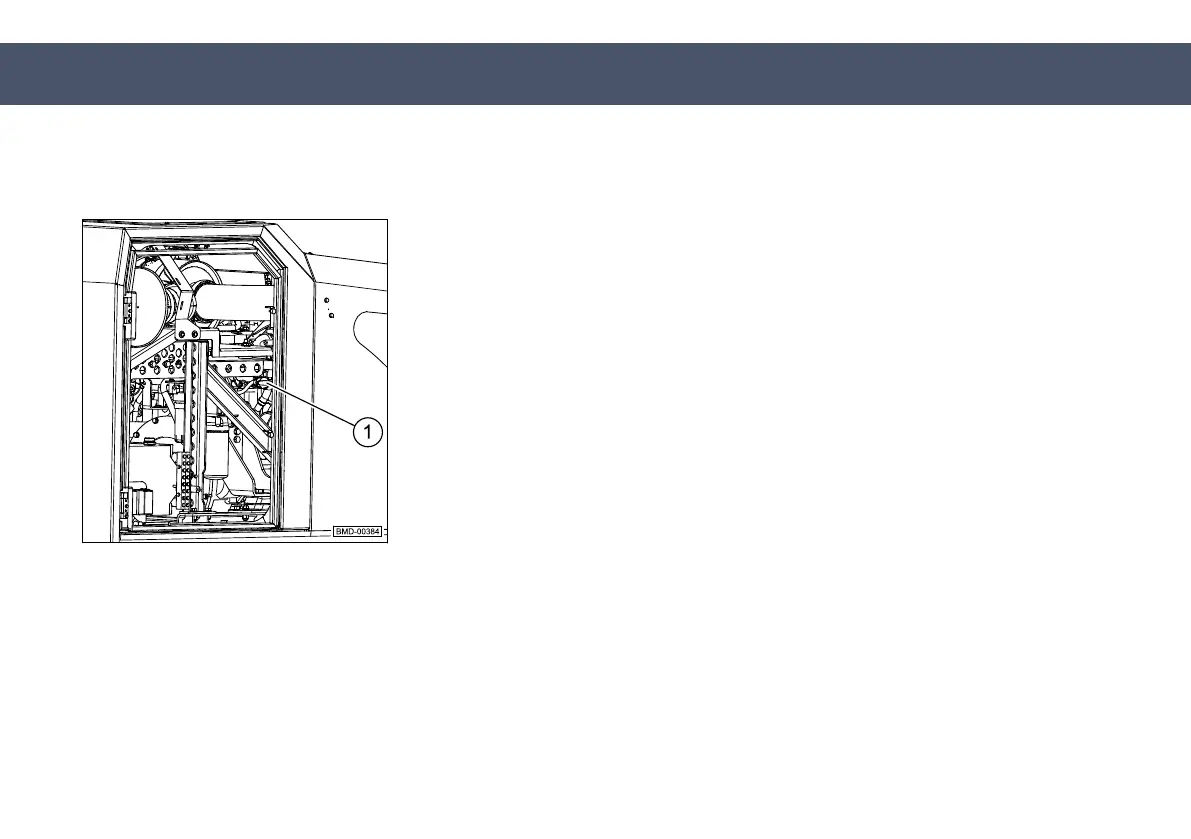

Withdraw the oil dipstick (1).
►
Wipe off the oil dipstick using a clean, lint-free cloth.
►
Insert the oil dipstick again as far as it will go.
Fig. 9.7
50-020-1011-900_EN
1.0 - © 2/15/2017
249
9 Daily maintenance work
9.3 Maintenance work to be carried out
