DANGER! Risk of crushing!
A risk of accident is posed due
to crushing if persons get under
the load being brought down if
the bodies are being lowered
manually.
n Make sure that no persons
are in the danger area
during manual lowering of
the bodies.
►

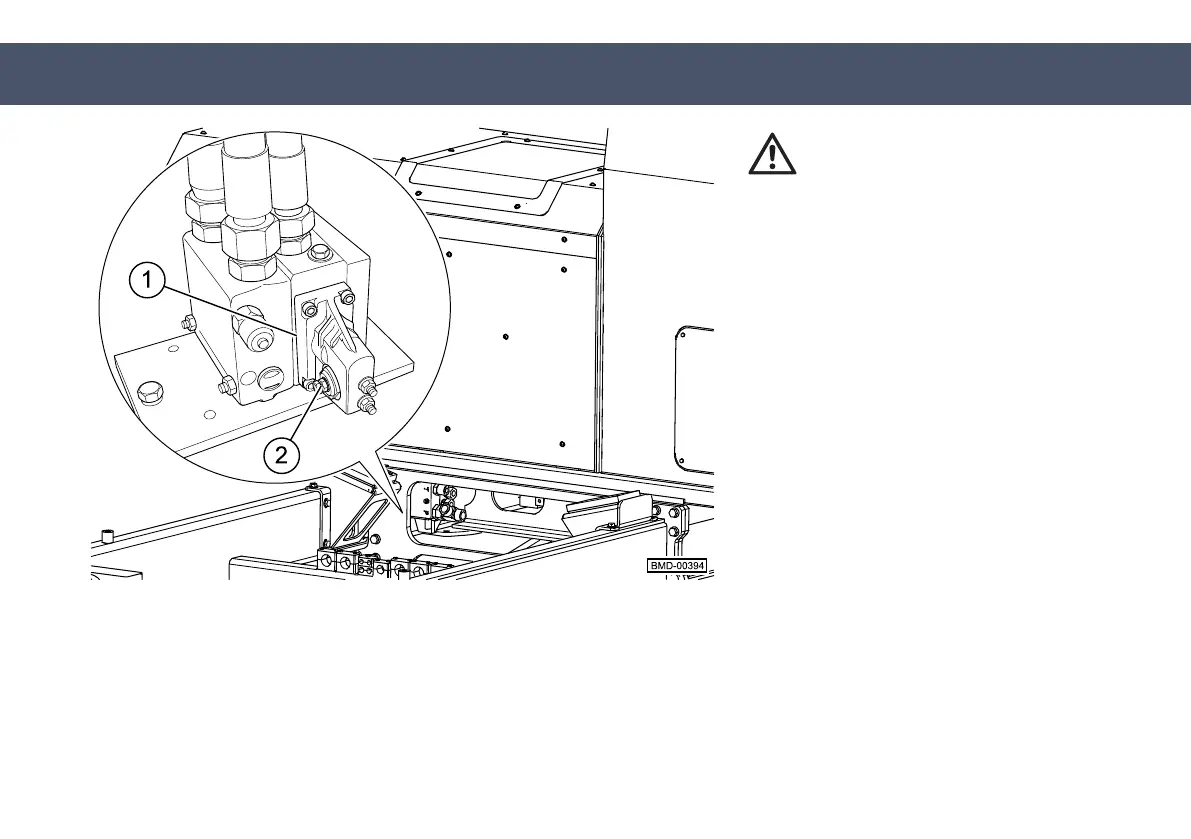

Operate the trough tilting valve (1)
on the hexagon (2).
To actuate, use a ring wrench/open-
end wrench (9 mm) to turn the hex‐
agon.
The rear tipping trough moves down
under its own weight. The procedure
can take a few minutes.
Fig. 10.
50-020-1011-900_EN
1.0 - © 2/15/2017
266
10 Malfunctions and troubleshooting
10.2 Malfunctions
