Platform with crane

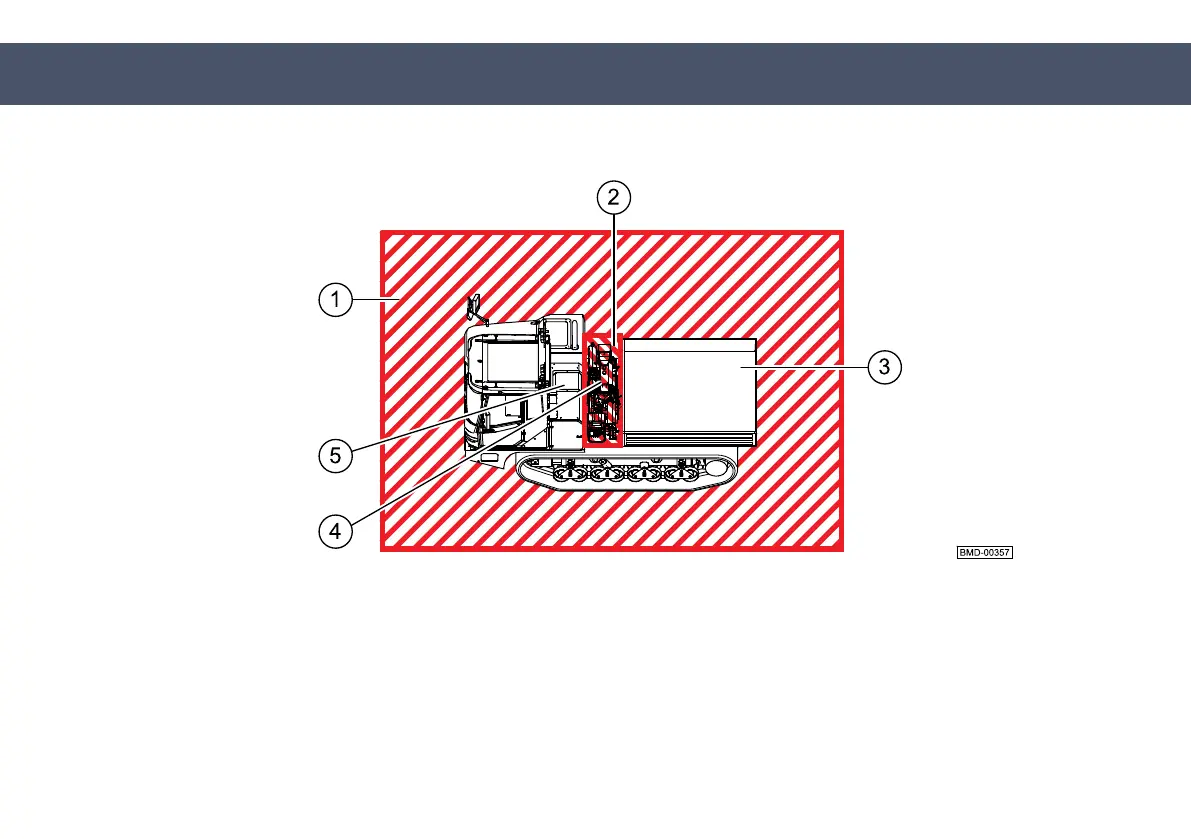

Fig. 3.8: Danger area of machine equipped with platform + crane
1 Danger area around machine 2 Danger area of crane 3 Platform
4 Crane 5 Basic machine
The danger area around the machine (1) depends on the position of the
crane (3) or the area to be reached by the crane.
