Display Explanation & Operating Functions

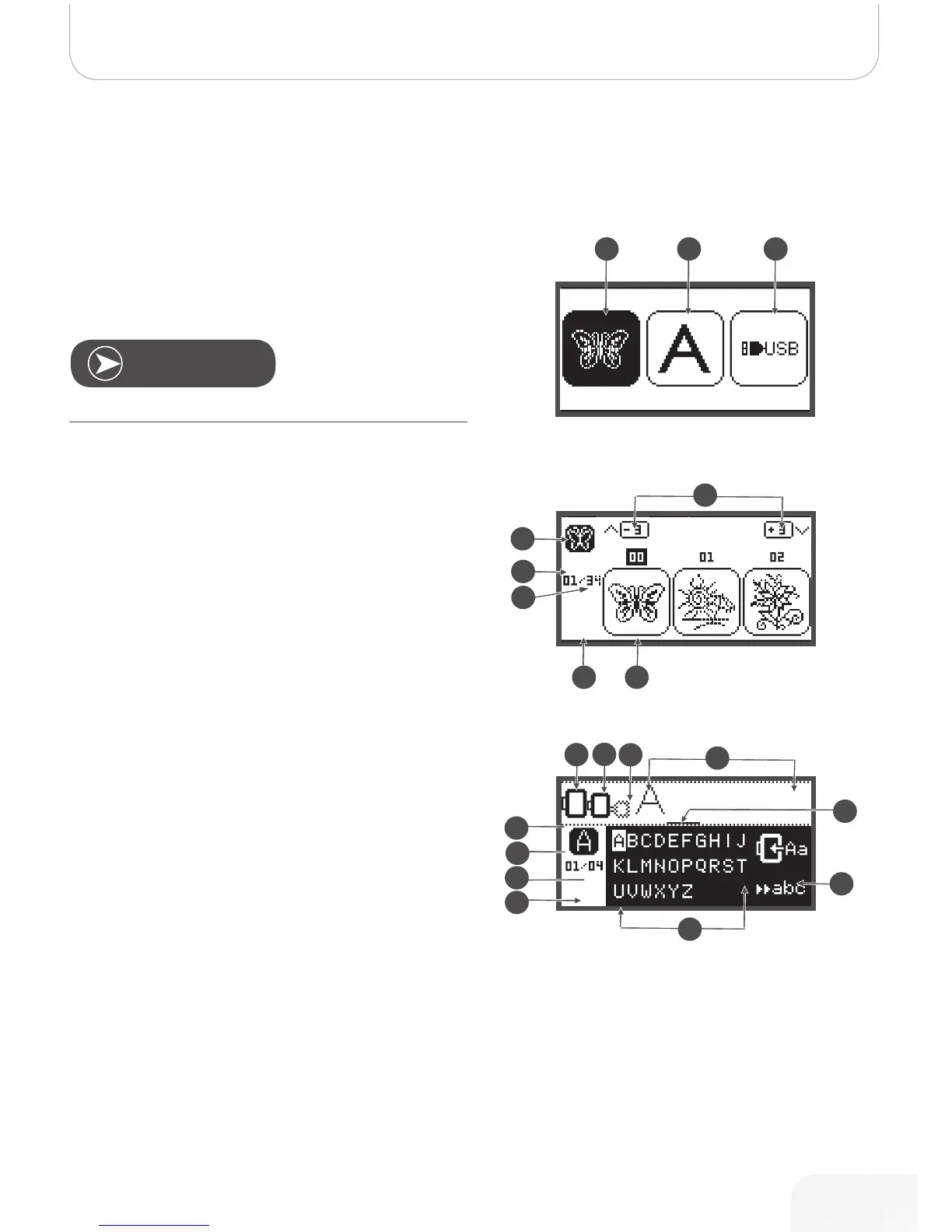

Embroidery mode display - type selection display
1 Built-in Embroidery Designs
2 Built-in Embroidery Letters
3 Designs from USB
Embroidery Mode
1 2 3
6
7
4
18
20
5
13
9
8
12
11
10
19
17
16
15
14
This embroidery machine reads .exp format only
Embroidery mode display - Built-in Embroidery letters
10 Embroidery hoop size L-110*170mm
11 Embroidery hoop size M-100*100mm
12 Embroidery hoop size S-40*40mm* While the hoop
icon is flashing the is adjusting the size or the current
size will change.
13 Editing area
14 Cursor
15
16 Current page
17 Total page
18 Operation indication
19 Embroidery letters
20 Letter type font
Embroidery mode display - type selection display
4 Type mode
5 Indication - select page up/down
6 Current design
7 Total design
8 Operation indication
9 Embroidery design number and design
Note
