Berthold LB 4700 - Connection Compartment

8 Explosion Protection Design Safety Manual / Explosion Protection Manual
20
56926BA26, Rev. 06, 04/2019
8.1 Connection Compartment
IMPORTANT
The screws that secure the conductors must be connected with a torque of 1.2
Nm on the bushing.
1
2
3
Signal and power supply circuit +
Signal and power supply circuit -
Pt100 +
4
5
6
Pt100 -
Equipotential bonding
Equipotential bonding

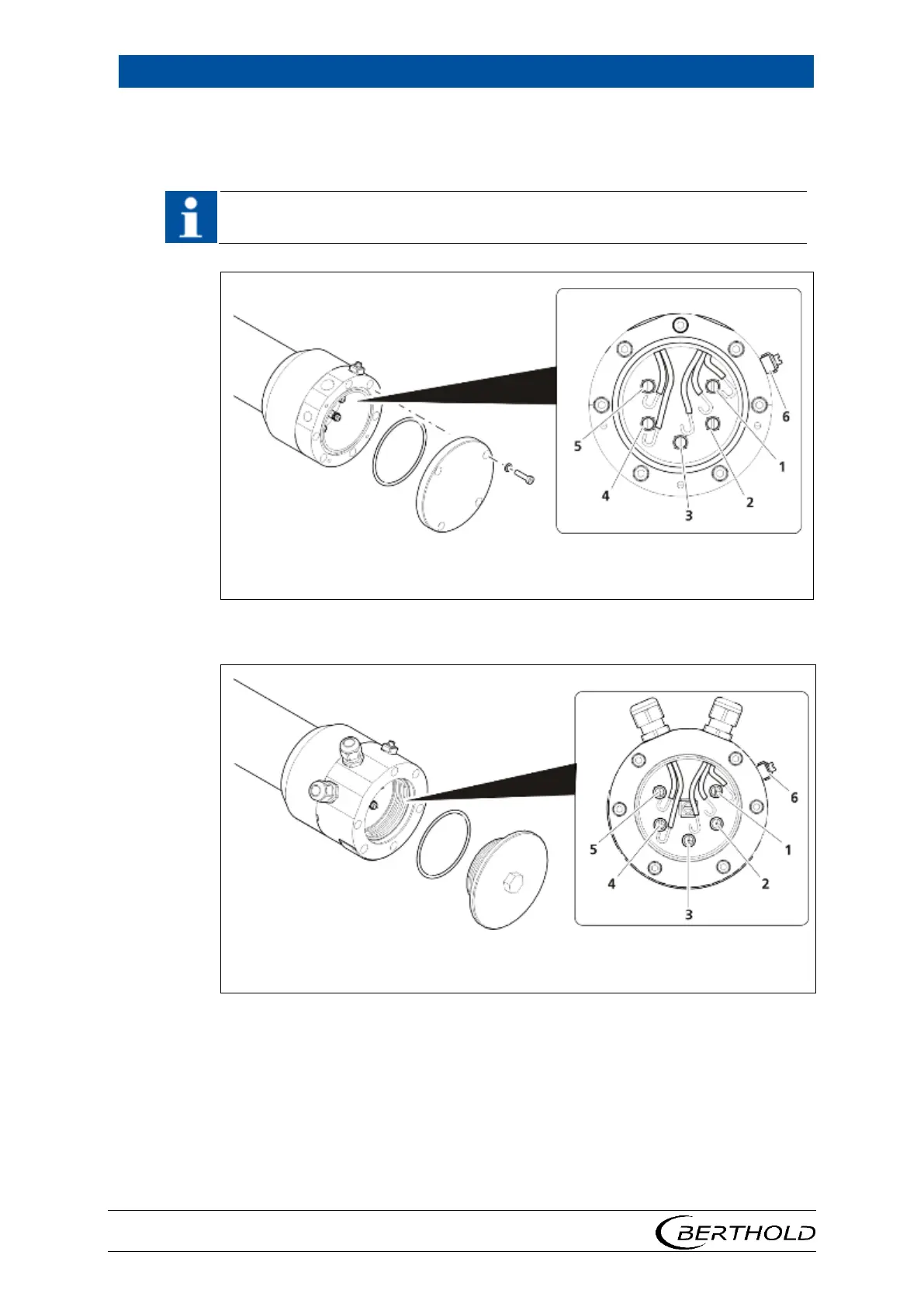

Fig
. 4 Connection Compartment LB 4700-xx-1x / LB 4700-xx-Ix
1
2
3
Signal and power supply circuit +
Signal and power supply circuit -
Pt100 +
4
5
6
Pt100 -
Equipotential bonding
Equipotential bonding
Fig
. 5 Connection Compartment LB 4700-xx-Fx
