Overview ATEX/IECEx variant
The detectors consist of the following components.
1
2
3
4
5
Screws cover
spring washers
Cover
Sealing
Socket unit with detector electronics
6
7
8
9
Photomultiplier holder
photomultiplier
scintillator
Stainless steel housing (housing
tube)
Fig.

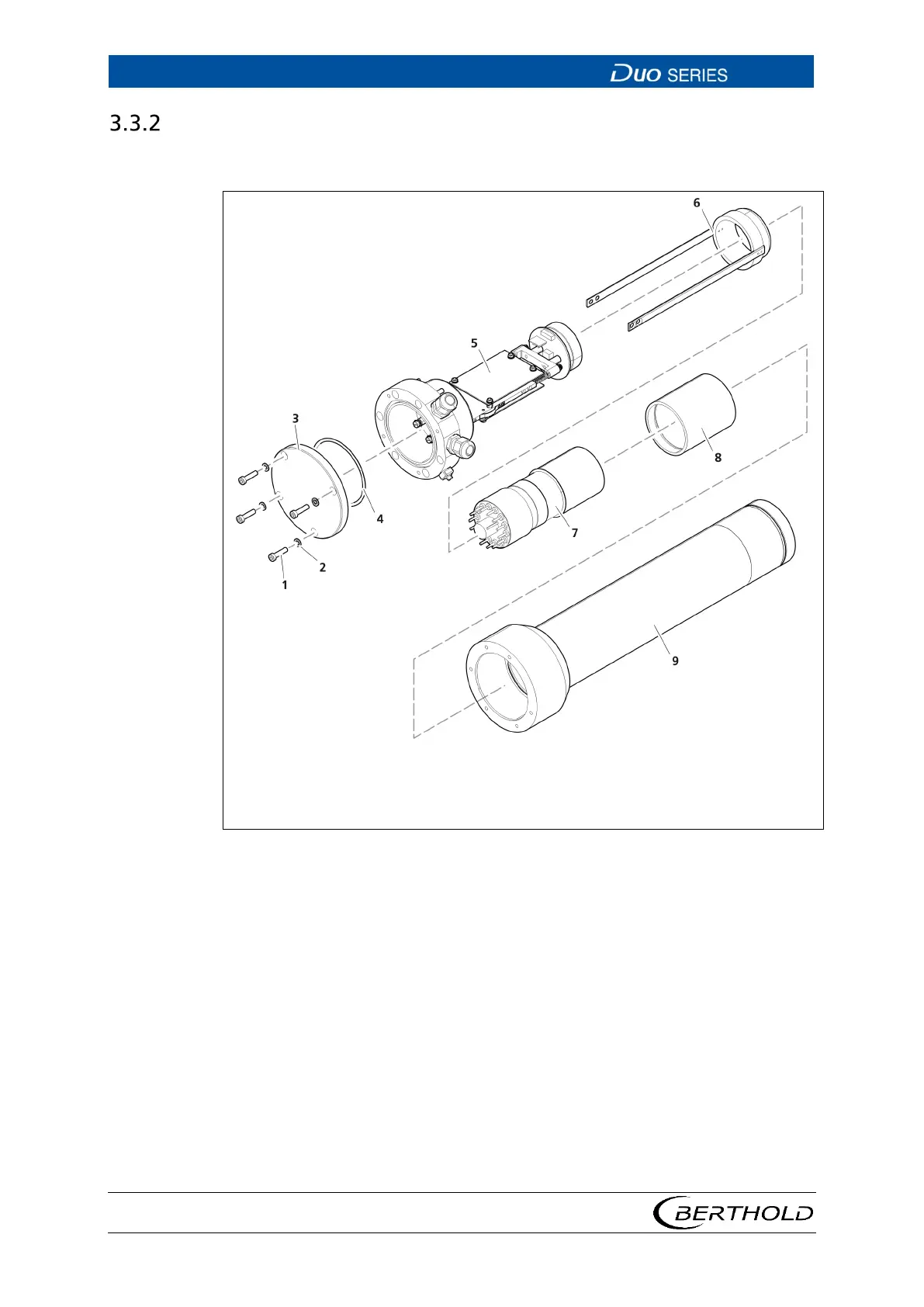

3 View of DuoSeries detectors (ATEX / IECEx variant)
Not visible on the view are the optional water cooling system and collimator.
