Collimator Assembly without Water Cooling System
Slide the collimator over the detector housing so that the radiation window is po-
sitioned in the direction of the source. To do so, position the collimator so that the
pattern of its fastening holes matches the one of the detector.
1
2
3
Detector
Marking groove
Collimator

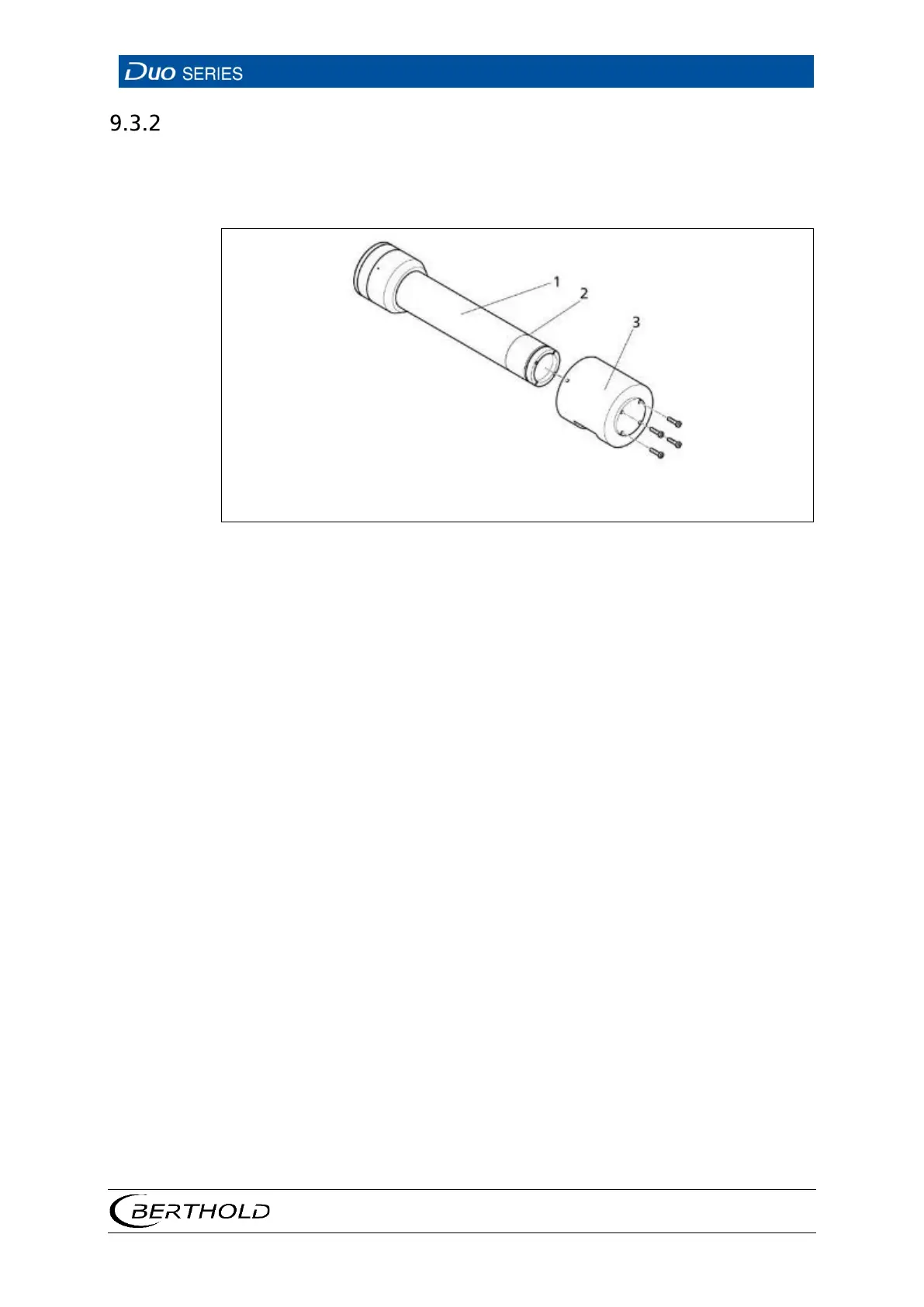

Fig.
49 Assembly Collimator without Water Cooling
