4.3 Installation of Mounting Clamps
Mounting clamps are used to fasten the detectors. These clamps are installed on a
mounting base, cross beams or similar which are to be provided by the operator. A
robust stainless steel holder is optionally available for detectors with and without
water cooling system (Fig. 6). For more details, please refer to document technical
information.
These mounting clamps are suitable for point and rod detectors.

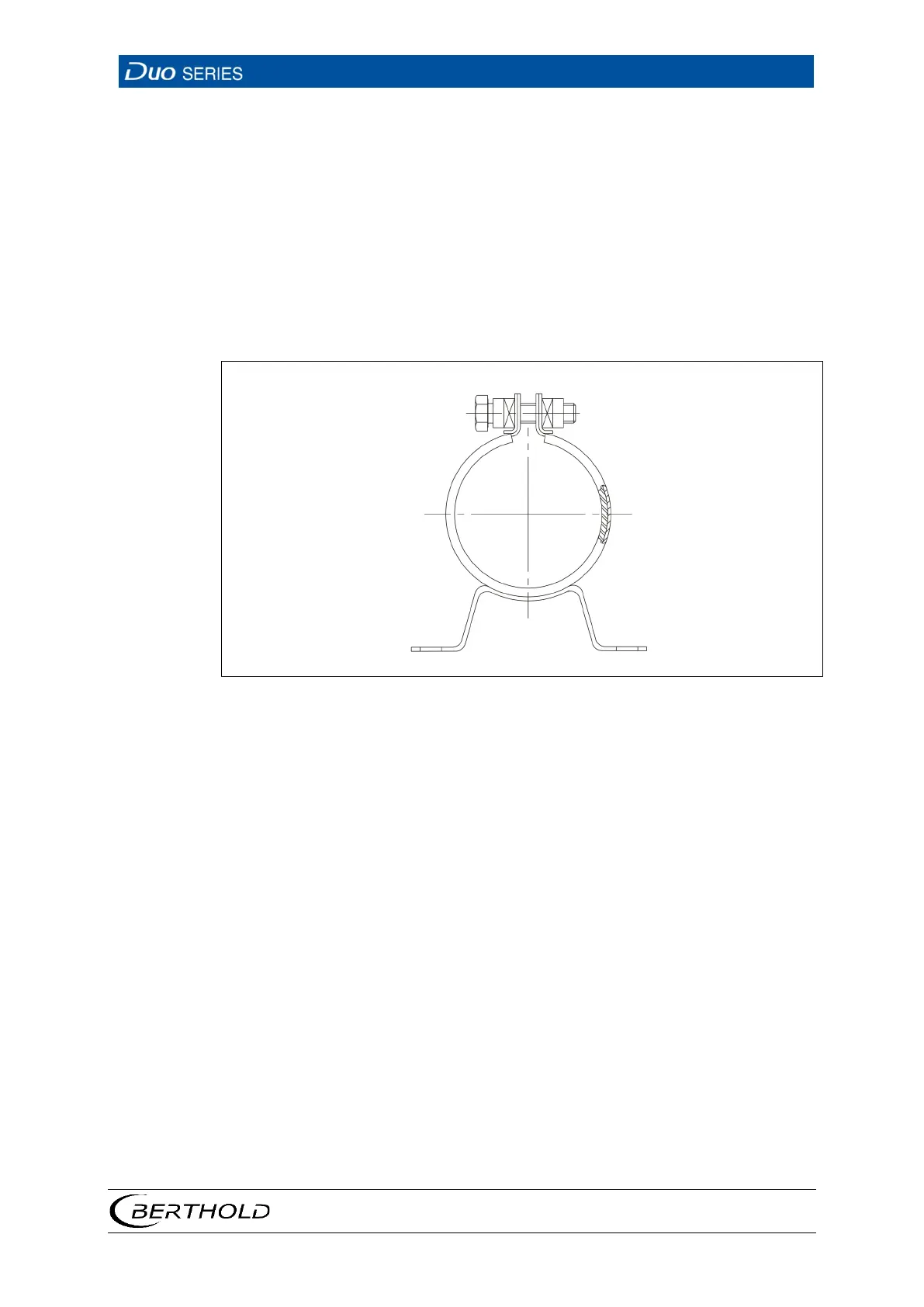

Mounting Clamps Type 1
5 Tension Clamp
1. Unscrew the screw on top of the mounting clamp.
2. Slide the clamp from the bottom over the detector housing.
3. Tighten the screw sufficiently so that the mounting clamp cannot slip on the
detector.
