56926BA2, Rev. 02, 04/2019
Mounting Clamps Type 2 and Detector Holder

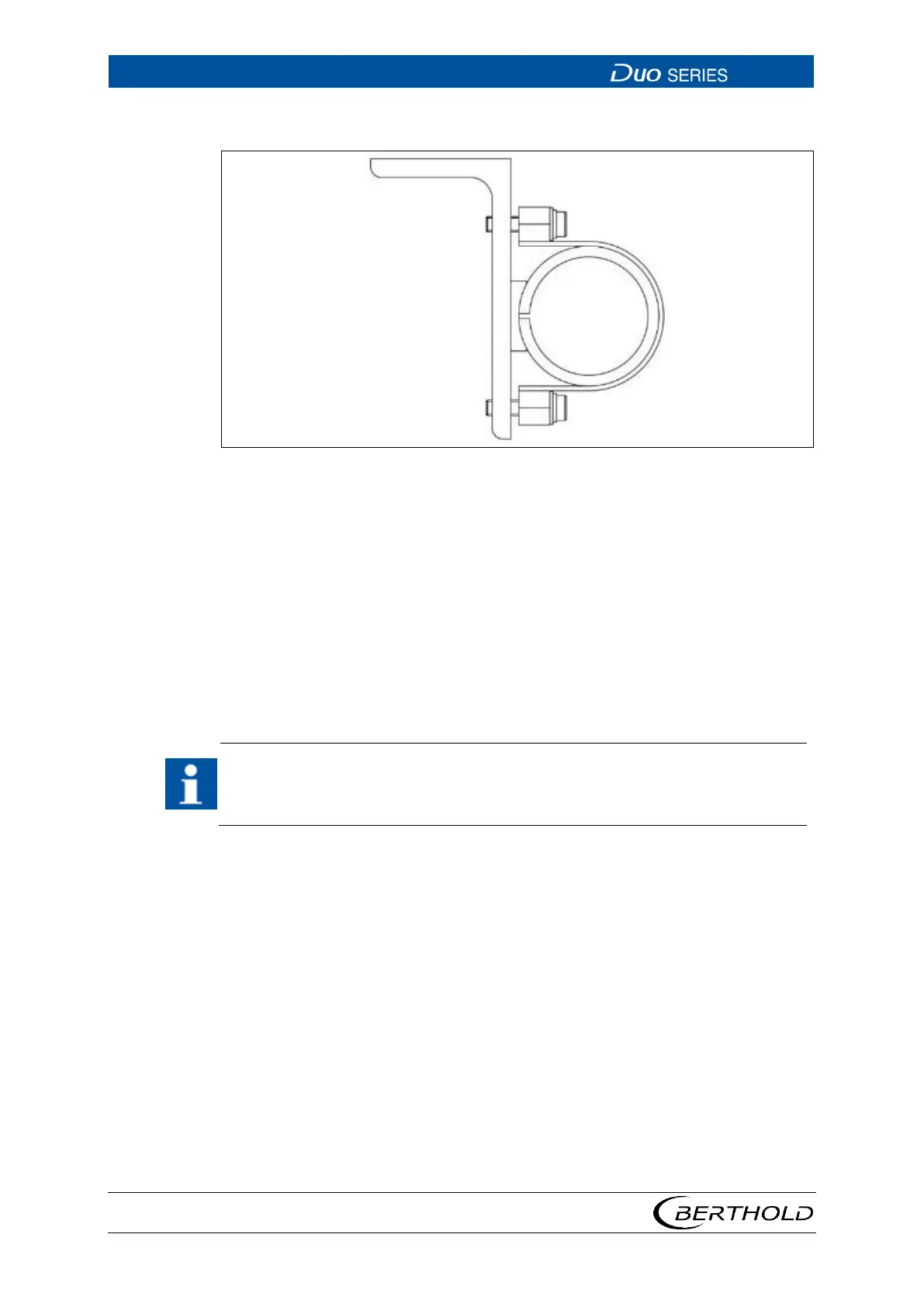

6 U-clamp and Detector Holder Stainless Steel
1. Unscrew the two screws on the side of the mounting clamp.
2. Take off the top part of the mounting clamp.
3. If necessary, remove the spacer ring if a detector with water cooling system is
to be installed.
4. Place the detector in the bottom part of the mounting clamp
5. Refit the top part and tighten the screws until the mounting clamp can no
longer slip on the detector.
At least two mounting clamps must be used for each detector. The two clamps
have to be mounted as far apart as possible (observe the installation situation).
Neither of the two clamps may be mounted in the sensitive area of the detector
(indicated by marking grooves on the housing).
