56926BA2, Rev. 02, 04/2019
4.6 Installation on a Conveyor Belt
Various measuring frames are available for the installation of detectors on con-
veyor belts. Some examples are shown in Fig. 11. For the detailed description of
the measuring frame and the associated dimension drawings, refer to the operat-
ing manual of the corresponding transmitter.
The measuring frames already have mounting clamps. To mount the detector,
please follow the instructions from 4.3.
2
3

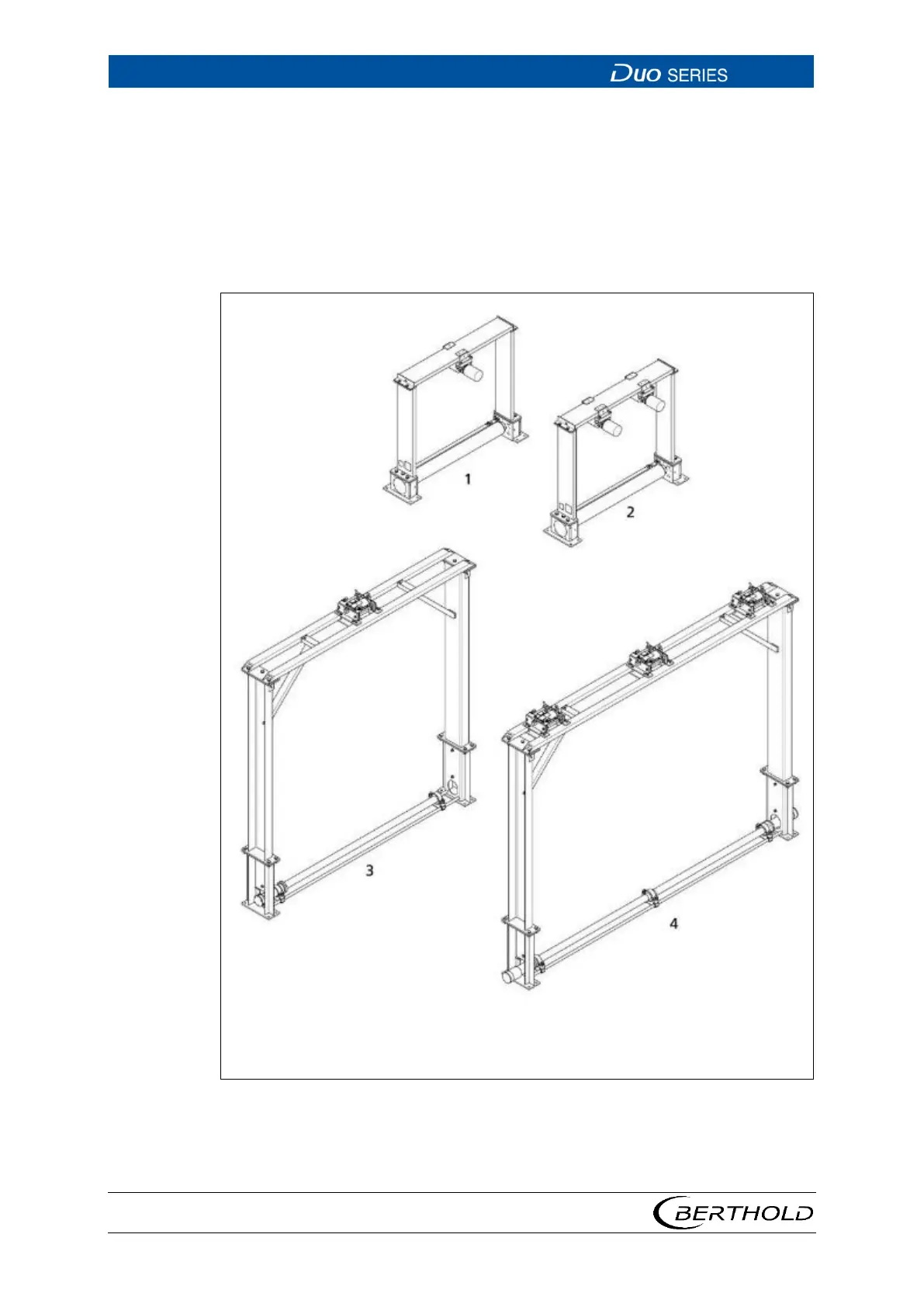

Measuring frame for one point detector
Measuring frame for two point detectors
Measuring frame for one rod detector
Measuring frame for two rod detectors
11 Overview Mounting on Conveyor Belt
