56926BA2, Rev. 02, 04/2019
4.4 Installation on a Pipeline
There are clamping devices for different pipe diameters and irradiation angles for
installing a detector on a pipeline. Some examples are shown in Fig. 7. For the
detailed description of the clamping devices and the associated dimension draw-
ings, refer to the operating manual of the corresponding transmitter.
The various types of clamping devices already include mounting clamps. To mount
the detector, please follow the instructions in chapter 4.3.
2
3
4

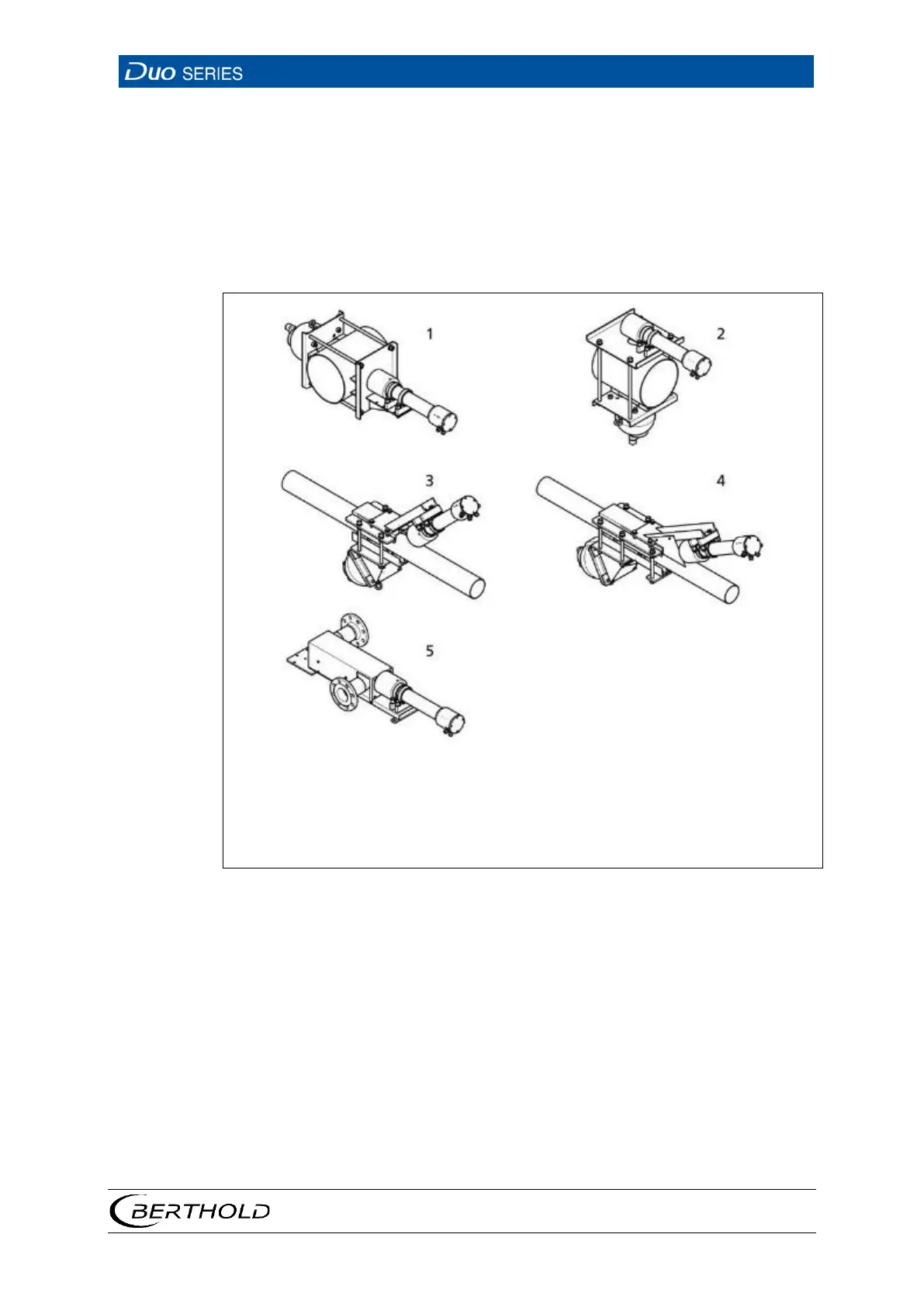

Clamping device for a radiation angle of 90° and vertical
detector mounting
Clamping device for a radiation angle of 90° and parallel
detector mounting
Clamping device for a radiation angle of 45°
Clamping device for a radiation angle of 30°
S-shaped density measuring path
7 Overview - Pipeline Installation
