3 System Description
56926BA2, Rev. 02, 04/2019
17
3.3 System Components
Overview XP variant (Class/Division)
The detectors XP variant (Class/Division) consist of the following components.
1
2
3
4
5
6
7
Screw lid
Sealing
Base unit with detector electronics
Photomultiplier holder
Photomultiplier
Scintillator
Stainless steel housing (housing tube)

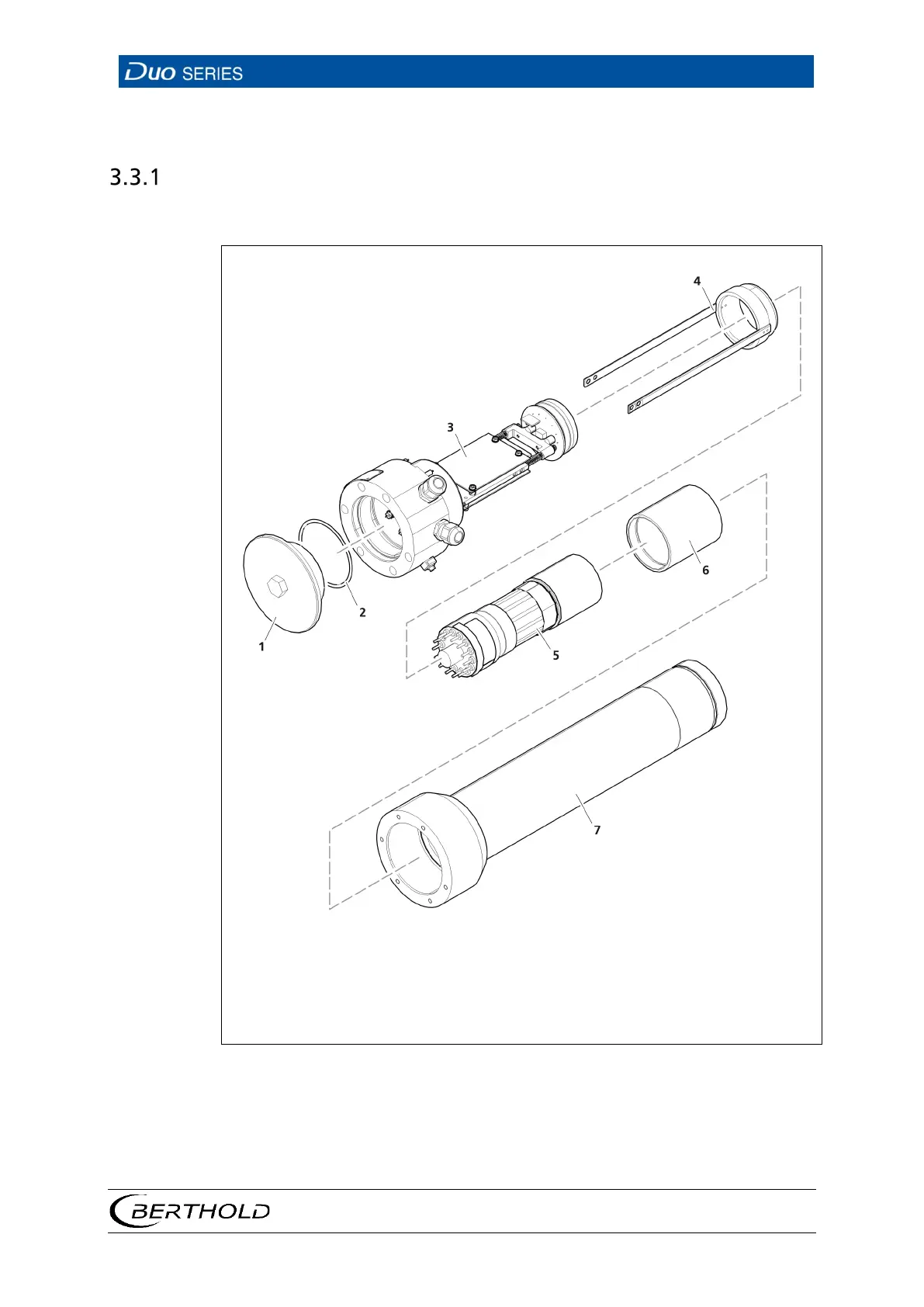

Fig.
2 View of the DuoSeries detectors XP variant (Class / Division)
Not visible on the view are the optional water cooling system and collimator.
