5 Electric Installation
LB 4700
30
56926BA2, Rev. 02, 04/2019
1
2
3
4
5
Signal and supply circuit +
Signal and supply circuit -
Pt100 +
Pt100 -
Potential equalization
6
7
8
9
Potential equalization
Cable glands
Sealing
Screw cap
Fig.

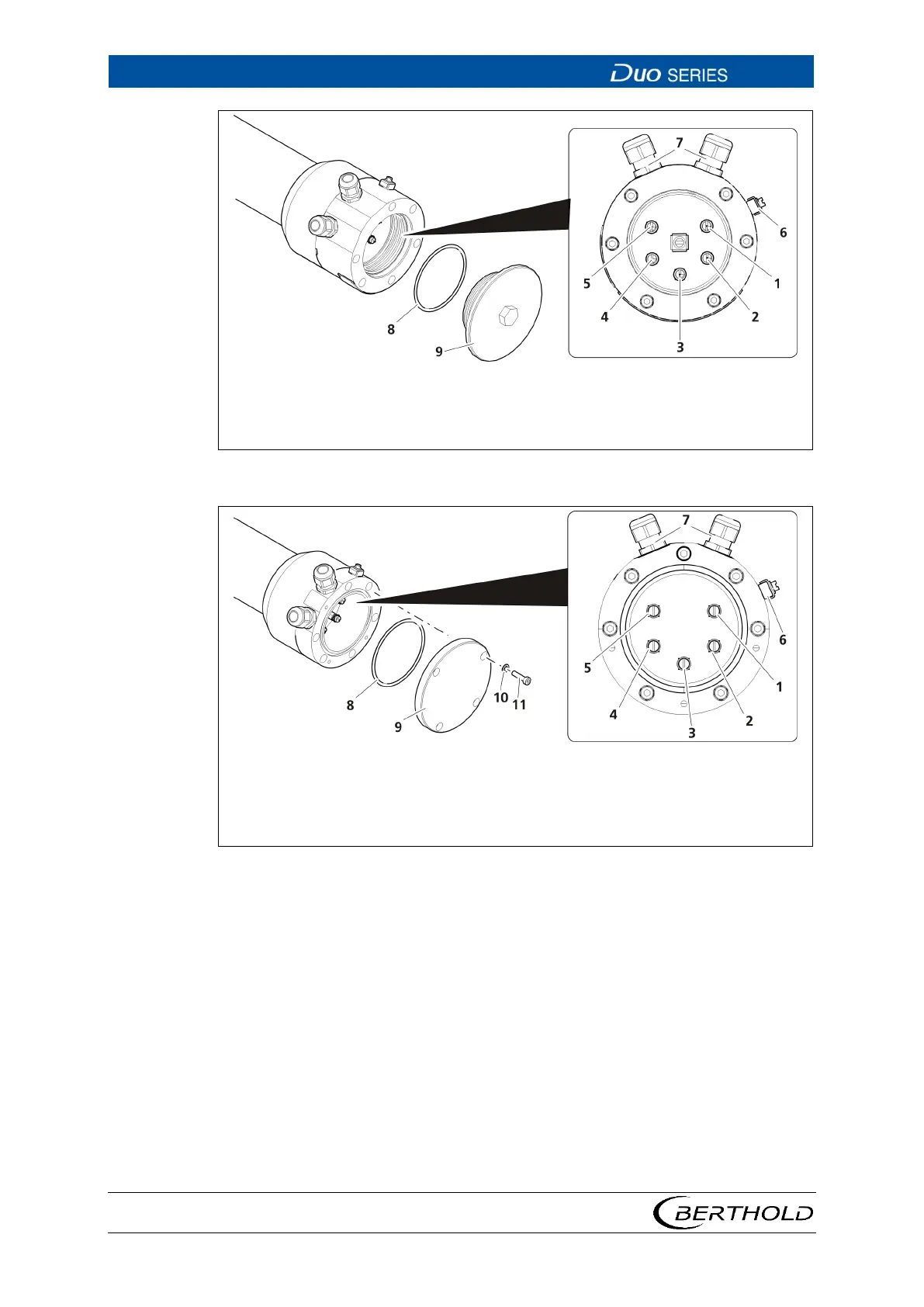

12 Connection compartment XP variant (Class / Division)
1
2
3
4
5
6
Signal and supply circuit +
Signal and supply circuit -
Pt100 +
Pt100 -
Potential equalization
Potential equalization
7
8
9
10
11
Cable glands
Sealing
Cover
Spring washers
Screws cover
Fig.
13 Connection compartment ATEX/IECEx variant
