LB 983 NightSHADE Operating Manual System Description
77

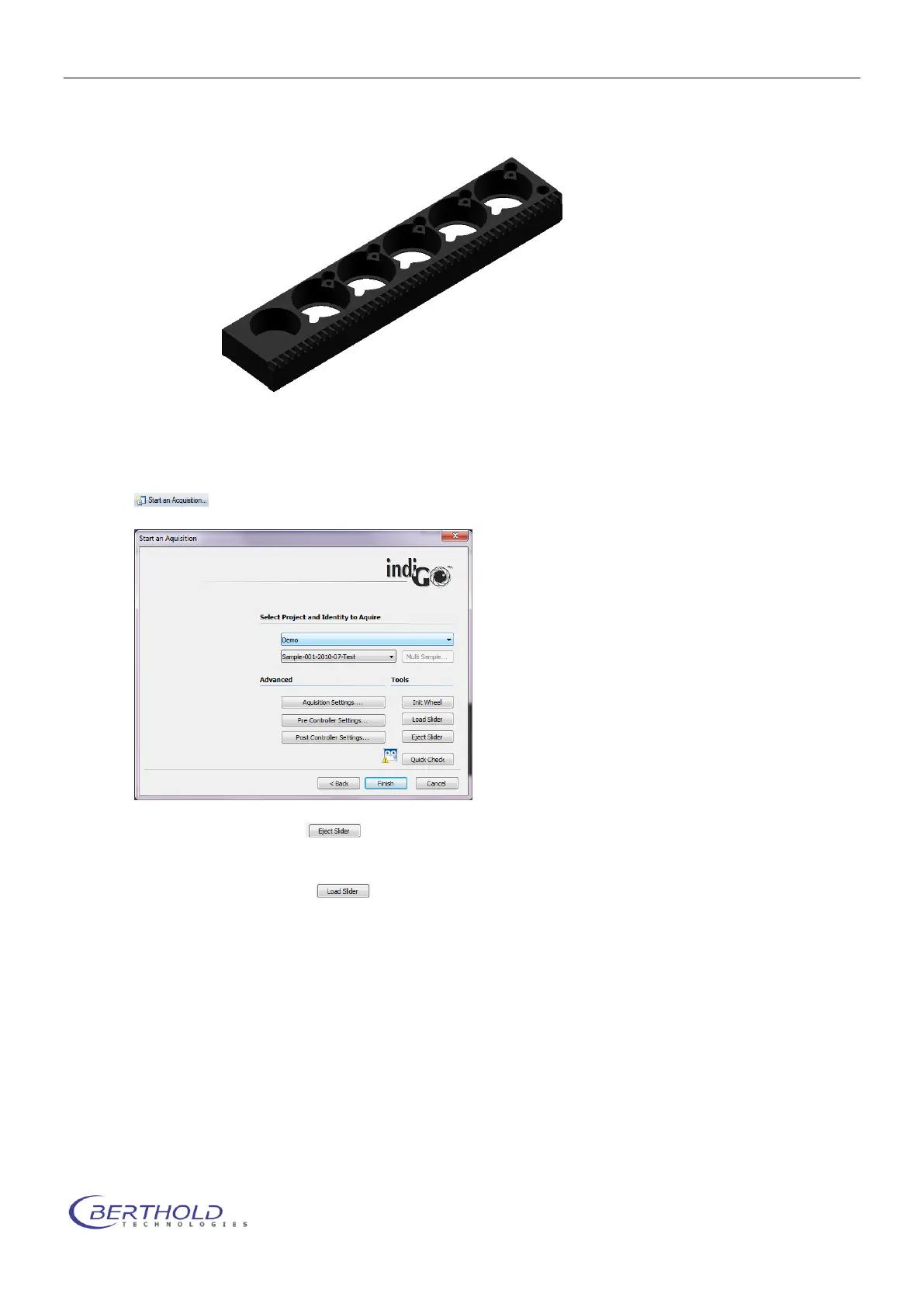

5.3.6 Filter Slider
The filter slider can accommodate five excitation filters with a diameter of 25 mm (or 1 inch).
The filter slider can be ejected via the indiGO software. The eject command can be found under
.
To eject the slider select .
When loading the filter please observe the correct installation direction (arrow on the filter
wheel).
To reload the slider select . After that the slider will be initialized by the instrument.
The Berthold Application Support is available to recommend filters when you are selecting the
optimum filter combination for your fluorescence application.
