5.3.8 Bottom Plate
The bottom plate helps you to position the acquisition objects. It includes two bolt heads on the
front panel to help you position and fix the samples or sample masks accurately. In addition,
there are two drilled holes for accurate positioning of sample holders.
The bottom plate can be removed for cleaning, if liquid was spilled.
In addition, the bottom plate can be pulled out from the front to facilitate the loading of samples.
When you push the bottom plate back in again, make sure that the plate snaps into place with
an audible click.
5.3.9 Top Part of Acquisition Device
The upper part of the instrument contains the camera, the fluorescence light source (option) and
the complete electronics.
To open the lid, press the blatt button and lift up the lid.
Please note:
The ventilation slits of the cooler must always be open!
5.3.10 Connections on the Rear Panel

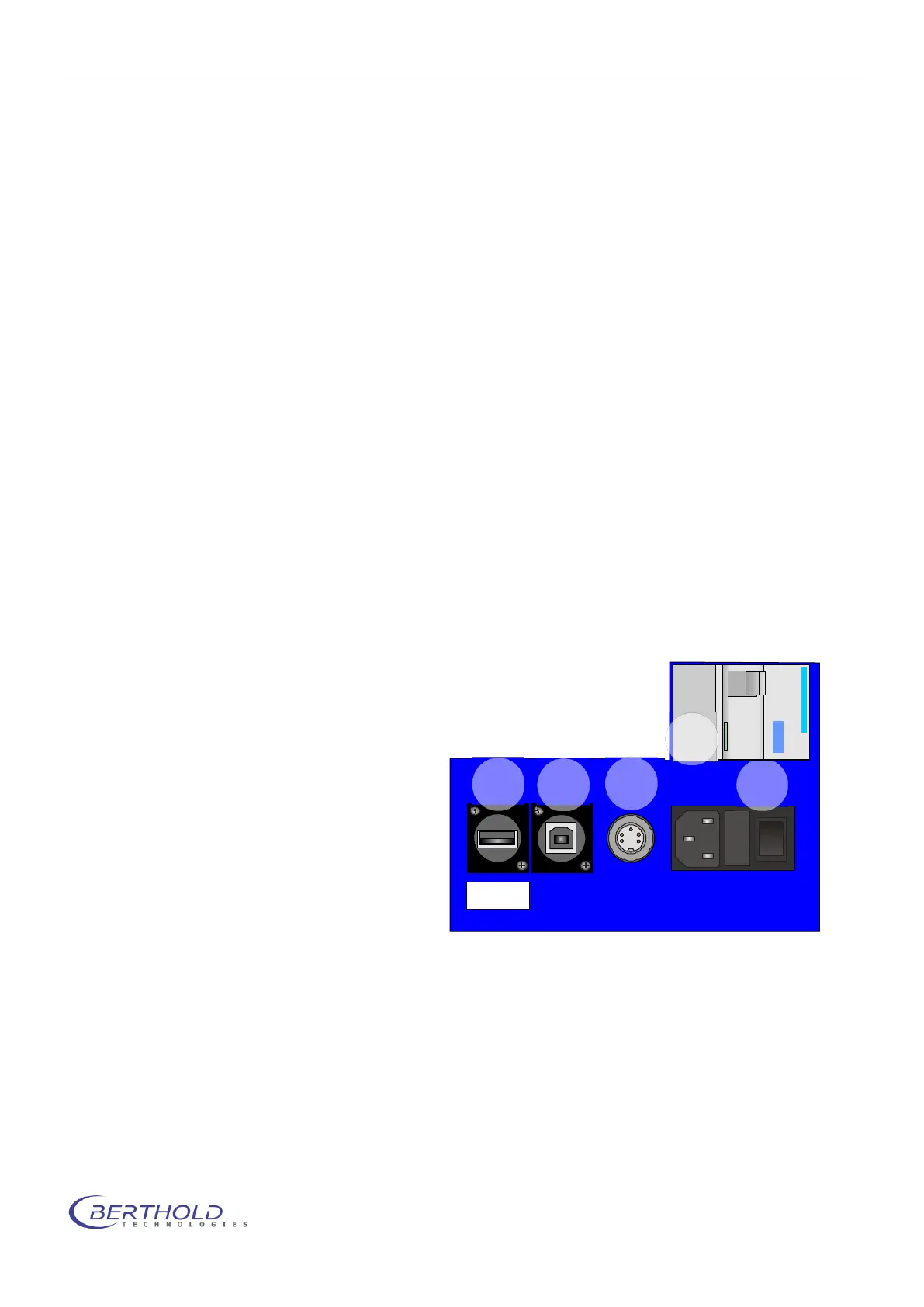

The power supply and device communica-
tion ports are located on the rear panel of
the NightSHADE.
Plug the power cord into the mains inlet (1).
The main power switch is located next to
the mains inlet.
Connect the NightSHADE to the PC via the
USB B-socket (2) on the rear panel using a
USB cable (A to B).
The 7-pin Tuchel socket (4) is the power
supply for the side mounted camera, the
USB socket (3) is used for the control of the
side view camera.
The cooling liquid connectors are located on the lower side of the rear panel. These quick tube
connectors connect the chiller to cool down the LED panels.
The Residual Current protective Device (5) is switched on using the grey handle, so that the “I”
is shown (“0” indicates off). The blue button is to test the safety cutoff function (false current).
The operation and testing of the device must be according to DIN EN 61557-6 (VDE 0413-6).
I
0
12
3
T
5
4
for camera
use only
