137

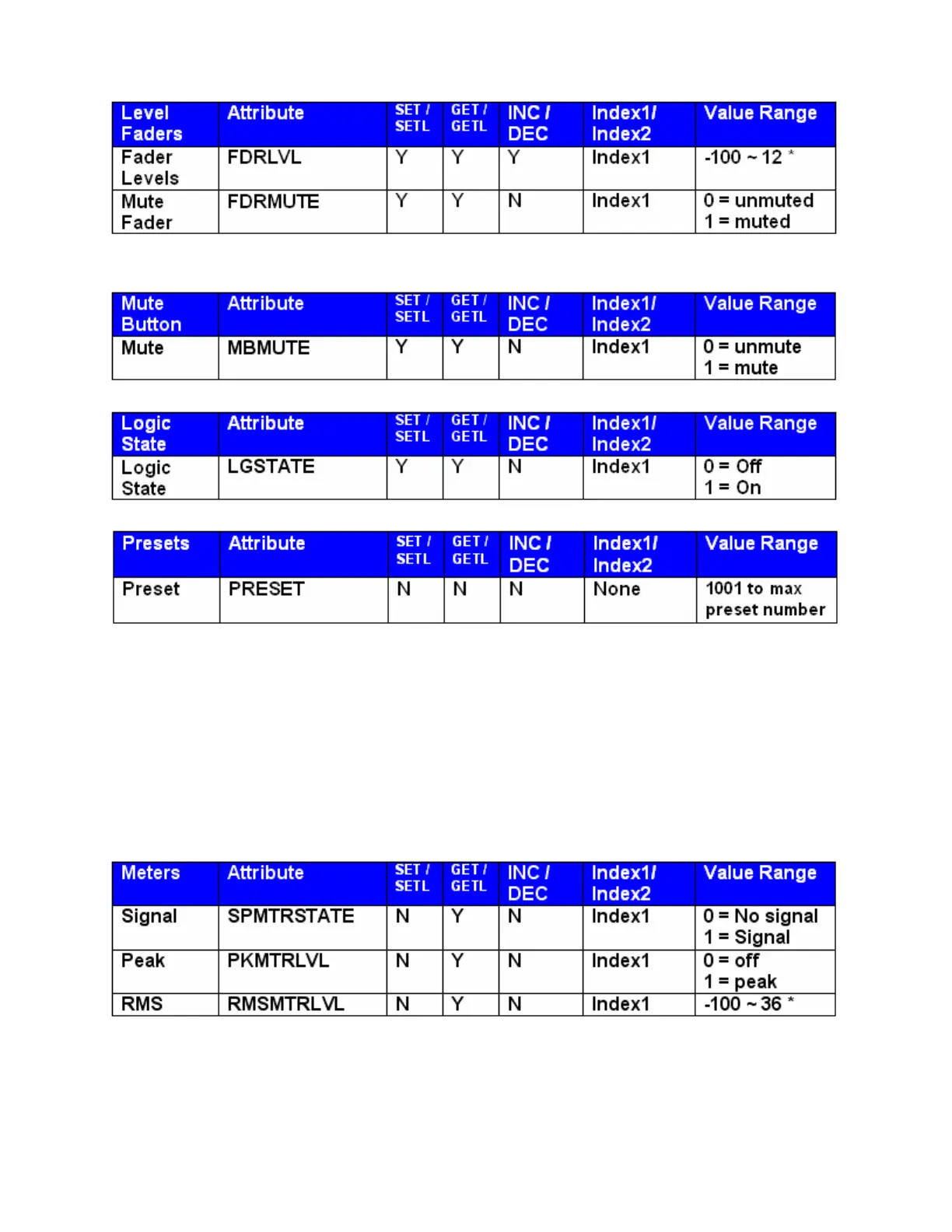

Control Blocks
* Can contain a decimal number.
Note: Instead of SET/SETL, GET/GETL, INC, or DEC; the preset attribute uses RECALL as the Command.
Preset numbers begin at 1001, regardless of preset name (the first preset defined is 1001, the next 1002,
and so forth).
Example: in the string: RECALL 0 PRESET 1001<LF>
We are telling Audia
®
to recall the first preset on an Audia system. Since presets apply to entire systems,
or DAP files, the Device Number will always be 0 for Preset strings.
Meter Blocks
* Can contain a decimal number.
Example: GET 1 RMSMTRLVL 48 1 <LF>
We are asking Audia
®
the RMS Meter 1 level on instance ID 48.
