138
Generator Blocks
No Attributes are specified at this time
Instance ID Number
Audia
®

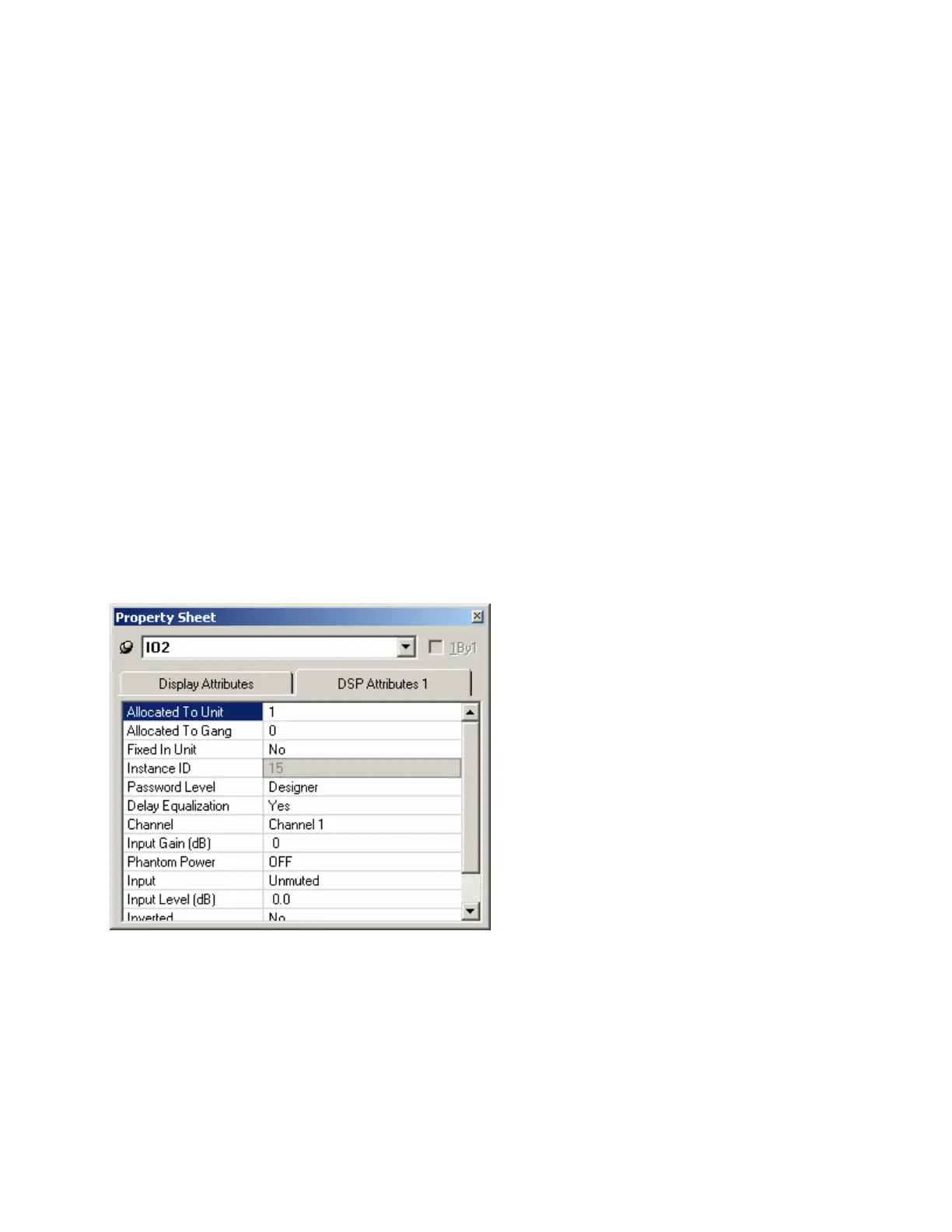

uses an instance ID number to specify the exact DSP block to be controlled. Right click on the DSP
block and select "Properties", the instance number can be found the DSP Attributes 1 tab.
**Note** From the factory the Audia software will assign an instance number to each DSP block on the
initial Compile of the system. Subsequent compiles will not change the Instance ID Numbers unless the
"re-assign Instance IDs" check box is selected under Compile Options.
If one or more DSP blocks are disconnected from the audio path (when connections are not made to at
least one input or output) the Instance IDs will be unassigned. New Instance ID(s) will be reassigned once
the DSP block(s) are properly connected again.
