Crossovers
These Component Objects provide 2-way, 3-way, & 4-way crossover functions. Crossovers may be
connected between any components within the Layout, for applications which require multiple outputs with
specified frequency ranges.
Once a Component Object is placed into the Layout, all available settings can be accessed by double-
clicking over the object. This produces a Control Dialog Box, which displays the component controls in a
more conventional user interface.
see 2-Way Crossover Control Dialog
see 3-Way Crossover Control Dialog
see 4-Way Crossover Control Dialog
Right-clicking over the object provides a pop-up menu of options.
Control Dialogs

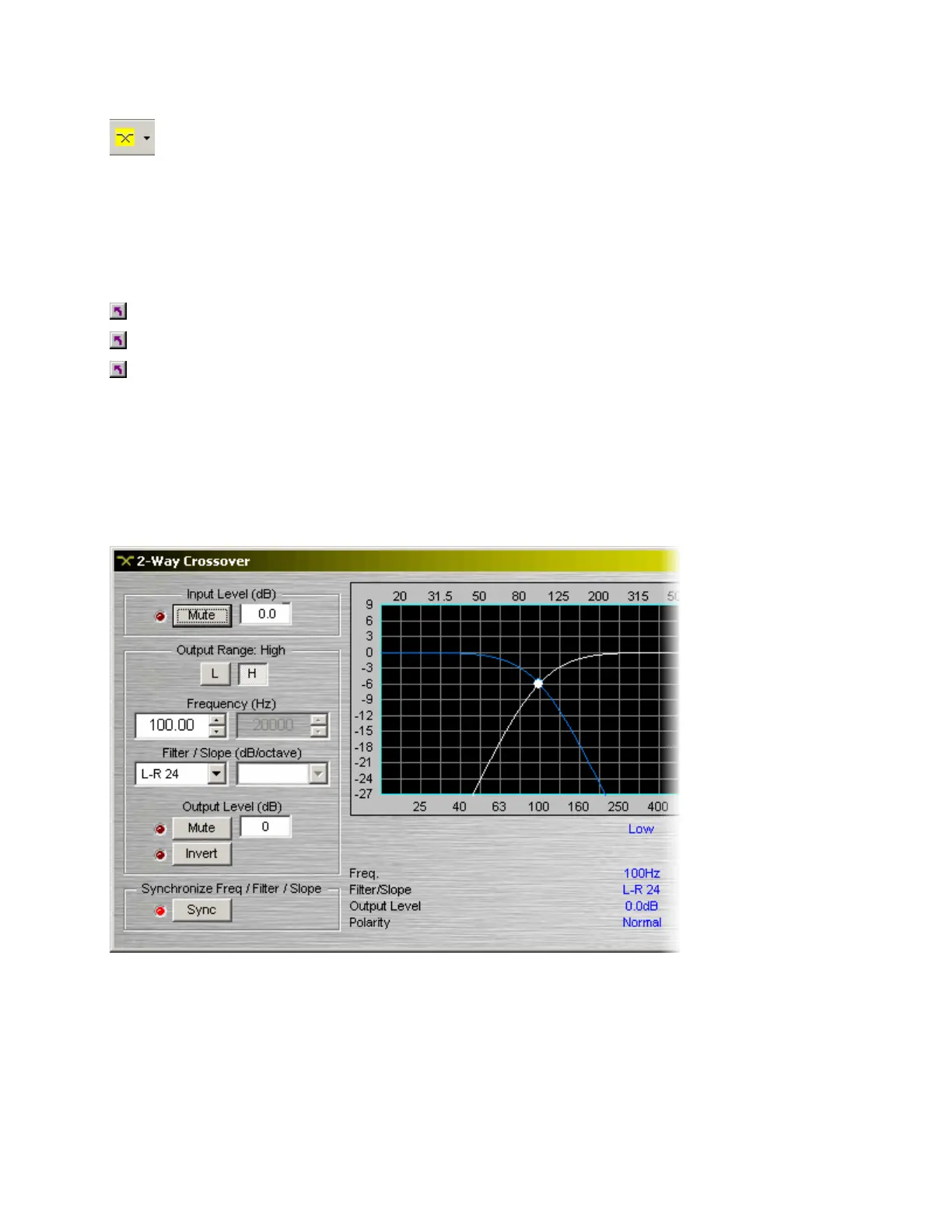

2-Way Crossover
Input Level provides muting and level adjustment for the input. Output Range selects the Low or High
frequency output. Frequency selects the filter cutoff frequency for the selected output. Output Range &
Frequency may also be selected by dragging the cursors shown inside the graph. Filter / Slope selects the
type (Linkwitz-Riley or Butterworth) and slope of filter used at the associated Frequency. Output Level
provides muting, level adjustment, & polarity reversal for the selected output. Sync forces filter adjustments
on adjacent outputs to be linked. Settings for each output are displayed across the bottom of the dialog
box.
Right-clicking over certain settings will provide a menu of additional options.
