Control Dialogs
Transfer Function

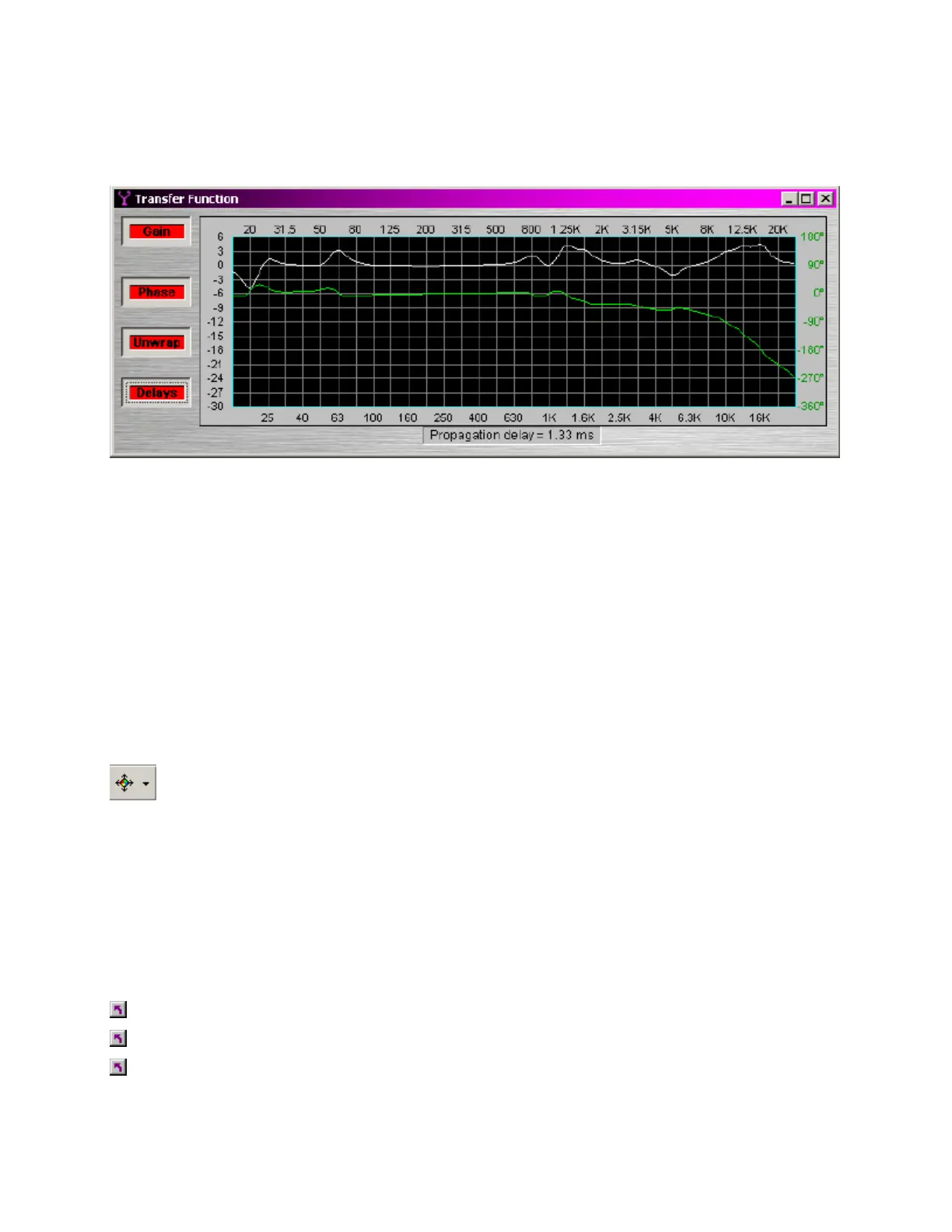

Transfer Function may be connected between any two component outputs on the same signal path, for a
comparative analysis of processing. Gain displays the difference in frequency response between the two
comparison points, as a white line. Phase displays the phase relationship between the two comparison
points, as a green line. Unwrap removes out-of-range phase rotations from the phase display. Delays
adds the effect of user-placed delay blocks (Delay and Matrix Mixer w/ Delay) into the phase display. The
Phase display does not indicate inherent propagation delay within the system. Propagation delay is
indicated separately at the bottom of the dialog box (1/3mS hops, if not compiled...or...real-time including
equalization delay, if compiled). When a Transfer Function dialog box is open, the associated signal path is
indicated as a dashed red line in the layout.
Specialty
These Component Objects provide Pass-Through and Split Pass-Through functions, to aid in the
organization of system connections. Pass-Through blocks allow wiring nodes to be strategically placed, so
audio or control (logic) signals can be routed in different directions. Split Pass-Through blocks allow
associated input and output wiring nodes to be placed in separate locations, with an implicit or 'wireless'
connection being maintained between them.
Pass Through and Split Pass Through blocks simply allow custom signal routing, and provide no actual
processing of their own. Therefore, they do not have Control Dialog Boxes. Instead, an Initialization
Properties window appears, for component definition and customization, when these blocks are placed into
the Layout.
see Pass-Through
see Split Pass-Through Input
see Split Pass-Through Output
