Index
Index refers to inputs, outputs, or cross points of an Attribute. Some Attributes will need an Index1 (Input or
Row) and/or an Index2 (output or Column). The tables in the Attribute section will define which, if any,
indexes are required for the string.
Example: INC 1 AMLVLIN 4 1 1<LF>

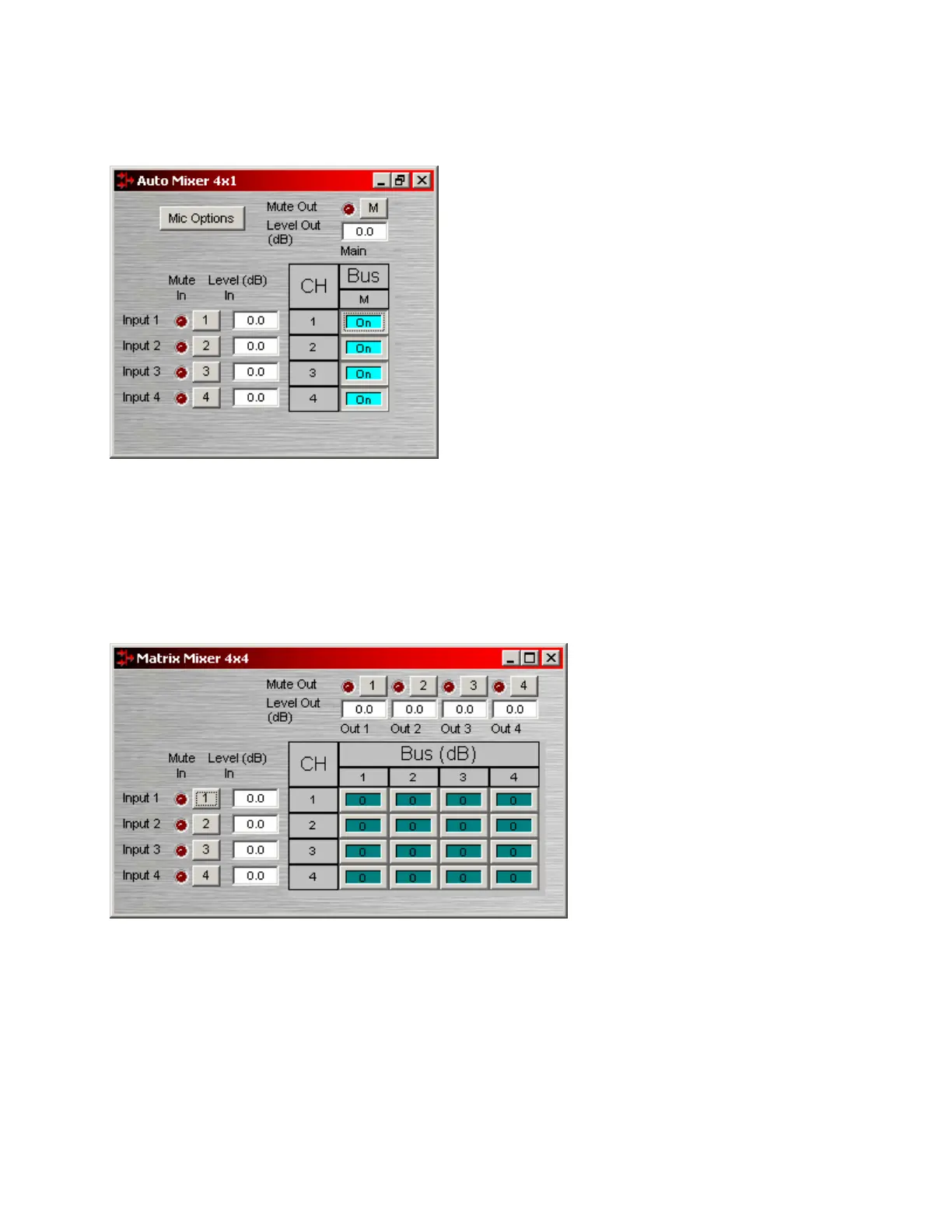

In an Automatic mixer on device 1 we are increasing the level of input 1 on instance ID 4 by 1dB. Index1 is
used to represent the input number.
Example: DEC 2 AMLVLOUT 6 1 2<LF>
In an Automatic mixer on device 2 we are decreasing the level of output 1 on instance ID 6 by 2dB. Index2
is used to represent the output number.
Example: SET 1 MMLXP 5 1 2 –5<LF>
In a matrix mixer on device 1 we are setting cross point 1:2 (row 1, column 2) level to –5dB on instance ID
5.
Note for commands with 2 Index fields, Index1 is the row, and Index2 is the column.
