58

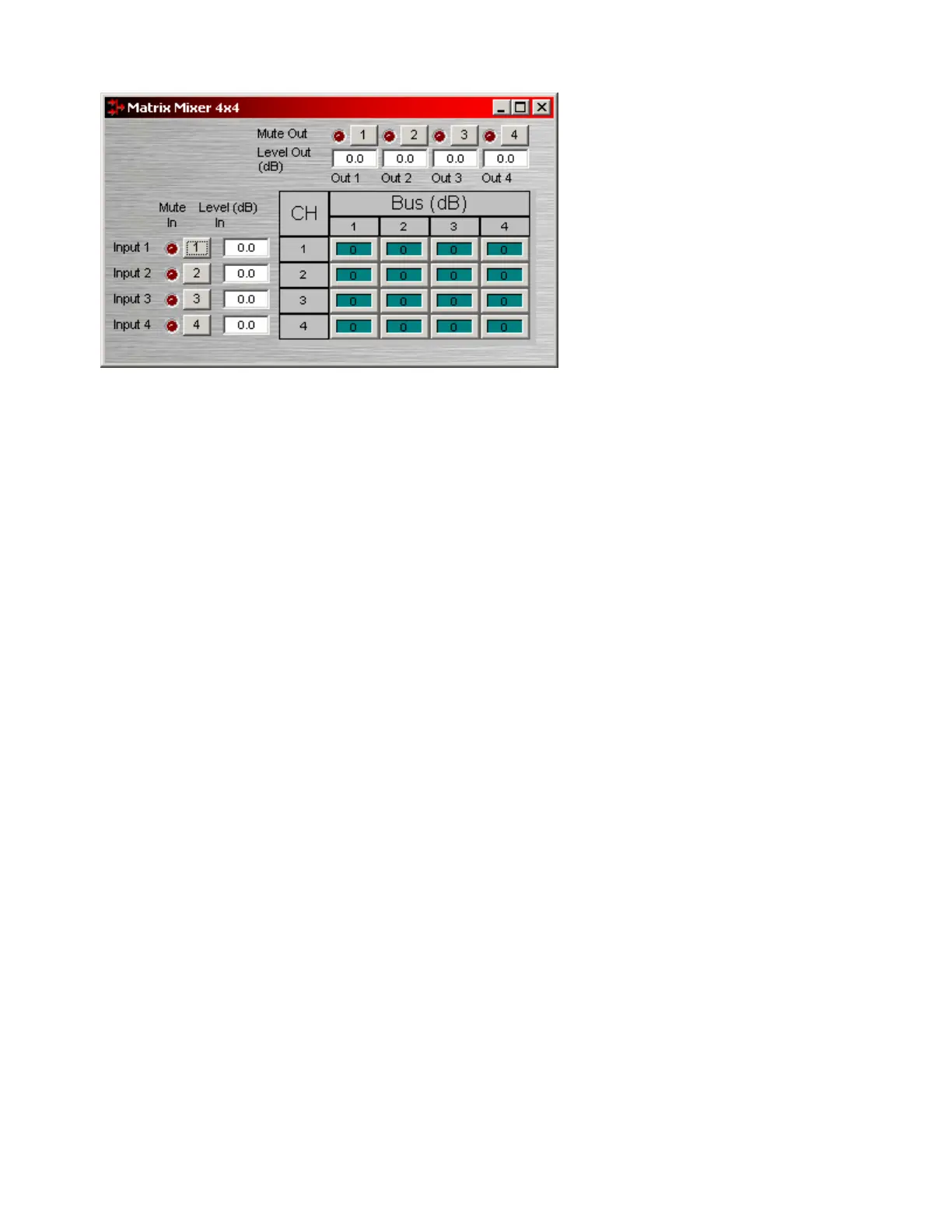

Matrix Mixers
Mute In turns the input signal
on/off. Level In adjusts the relative
input volume. Ch / Bus assigns
inputs to specific outputs, and
right-clicking allows level
adjustment. Mute Out turns the
output signal on/off. Level Out
adjusts the relative output volume.
Matrix Mixers w/Delay are also
available. Mix Table assigns Ch /
Bus to affect either level or delay
settings.
Right-clicking over certain settings will provide a menu of additional options. Unlike other components,
Mixers allow labeling of inputs/outputs within their dialog boxes. See Channel Identifier under Object
Properties Sheet.
