Split Pass-Through Output
More than one Link-Out block can be placed in
association with an existing Link-In block (see Split Pass-
Through Input).
Object Code of Input Link to Associate With selects
which existing Link-In block the new Link-Out block
should be associated with. The new Link-Out block will
include the appropriate number of output wiring nodes,
and the same numbered association, as other Link-Out
blocks already associated with the selected Link-In block.
Additional Link-Out blocks allow a single set of input
connections to be distributed to multiple sets of output
connections.
Pass-Through blocks simply allow custom signal routing,
and provide no actual processing of their own. APT
stands for Audio Pass-Through. LPT stands for Logic

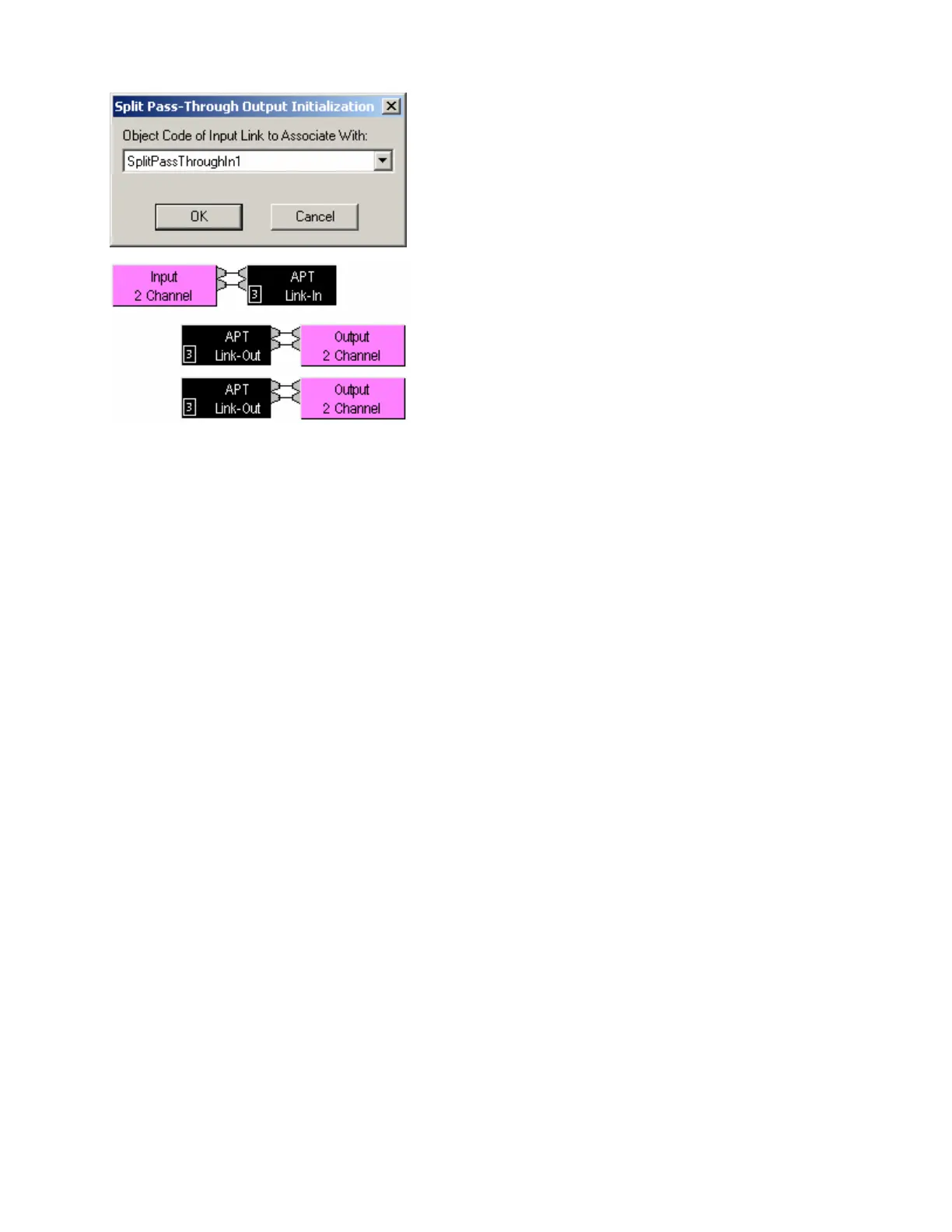

Pass-Through. This example shows an existing 2-
channel Audio Split Pass-Through with an additional 2-
channel Link-Out block.
