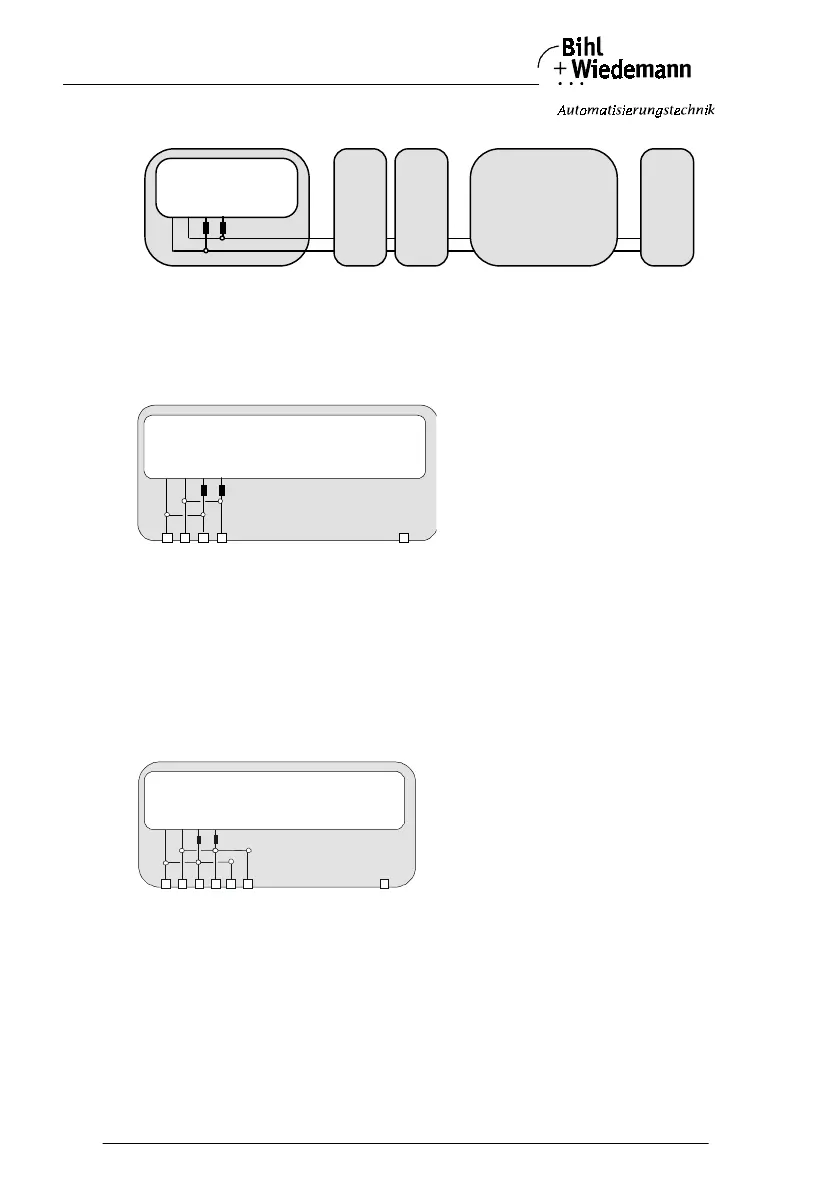

4.1.1 Single Masters in IP65
Every AS-i master and all the AS-i gateways in IP65 come with power supply A.
The AS-i master is connected to AS-i using the penetration technique of the elec-
tromechanical interface which is common with AS-i slaves as well.
4.1.2 Single Masters in IP20 with Power Supply A
Connections of the AS-i/PROFIBUS gateways without graphic display
The terminals have the following functions:
+ "AS-i +", Actuator Sensor Interface, positive terminal
- "AS-i -", Actuator Sensor Interface, negative terminal
GND Ground terminal, used for better EMC.
Should be connected with a short wire to machine GND.
Connections of the AS-/PROFIBUS gateway with graphic display (1307)
The AS-i/PROFIBUS gateway (art. no. 1307) with graphic display, power supply
A, has an additional AS-i connection.
The terminals have the following functions:
+ "AS-i +", Actuator Sensor Interface, positive terminal
- "AS-i -", Actuator Sensor Interface, negative terminal
GND Ground terminal, used for better EMC.
Should be connected with a short wire to machine GND.
