6.4.4 AS
-
i Master (Info)

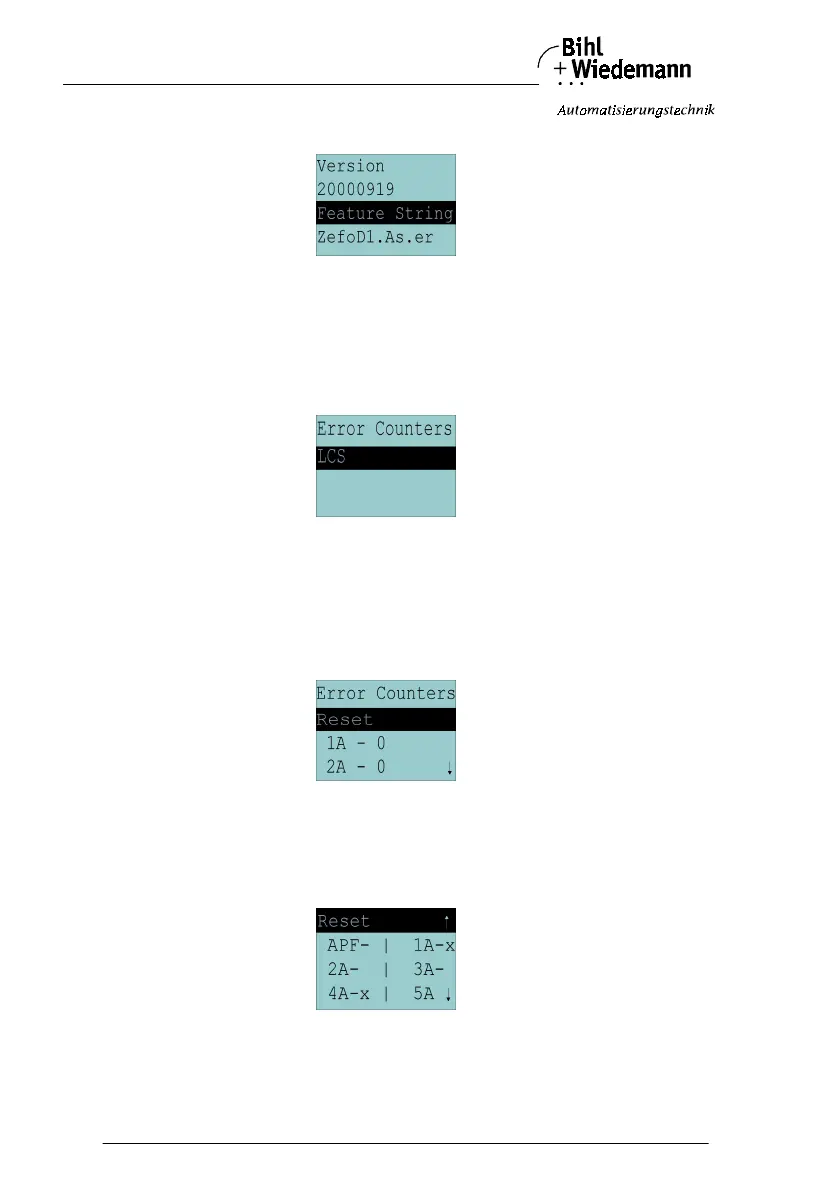

This function shows information about the version and the features of the AS
-
i
master.
Version xxxxxxxx (datecode of the firmware)
Feature String xxxxxxxxxxxxxxxx
6.5 Adv. Diagnosis (Advanced AS
-
i Diagnosis)
See also "Advanced Diagnostics for AS-i Masters", chapter 7.
Under the menue "Adv. Diagnosis" you find following submenues:
• Error Counters
• LCS (list of slaves, that produced a configuration error)
6.5.1 Error Counters
This list shows the error counter for each single AS
-
i slave.
Furthermore the number of power failures on AS
-
i (APF) is displayed.
With "Reset" the error counters are reset to 0.
6.5.2 LCS (List of Slaves, that produced a Configuration Error)
This list shows for each single AS
-
i slave wether at least one configuration error
was released through an errorneous telegram transmission. This function is espe-
cially important if the configuration error only occurs short-time.
